CASD copper-aluminium lug

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

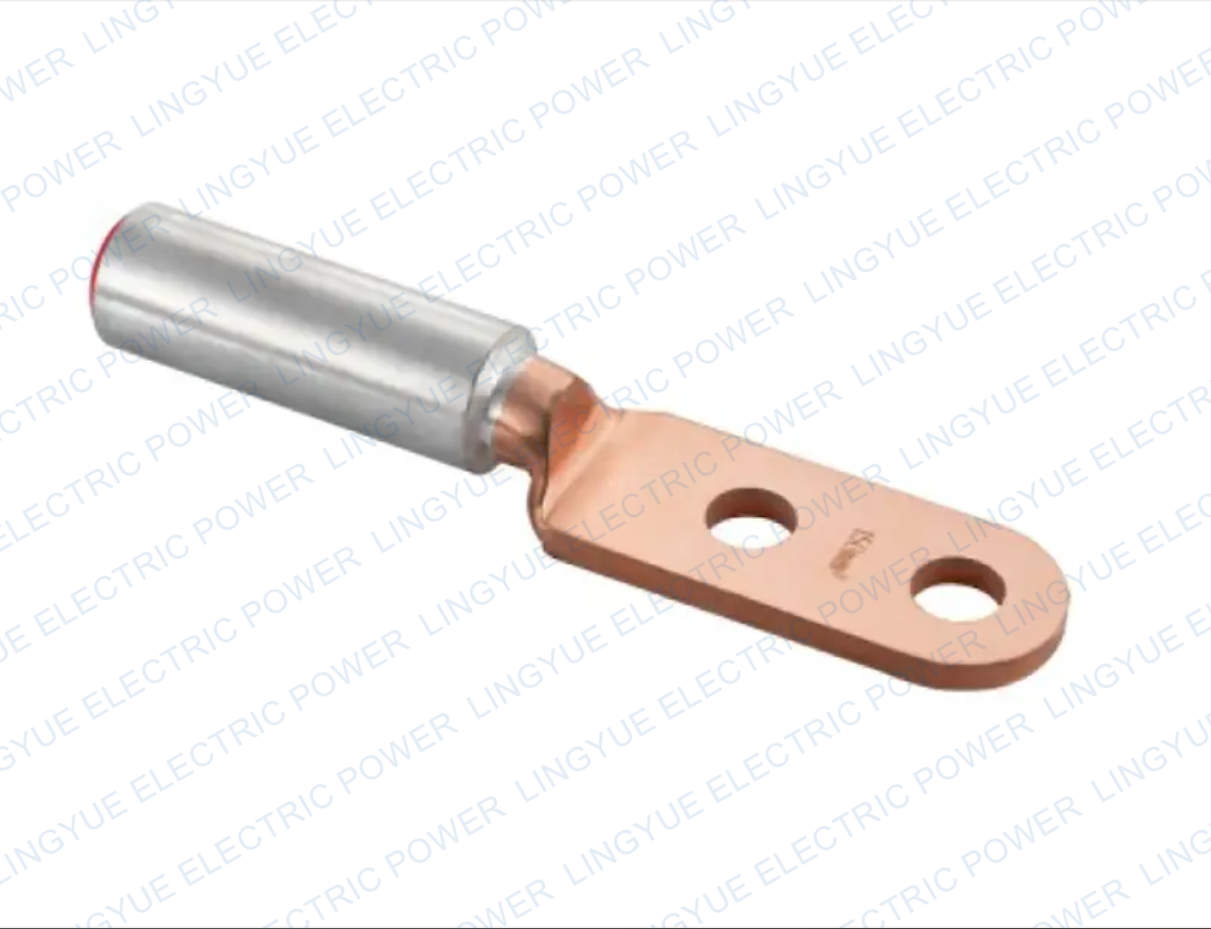

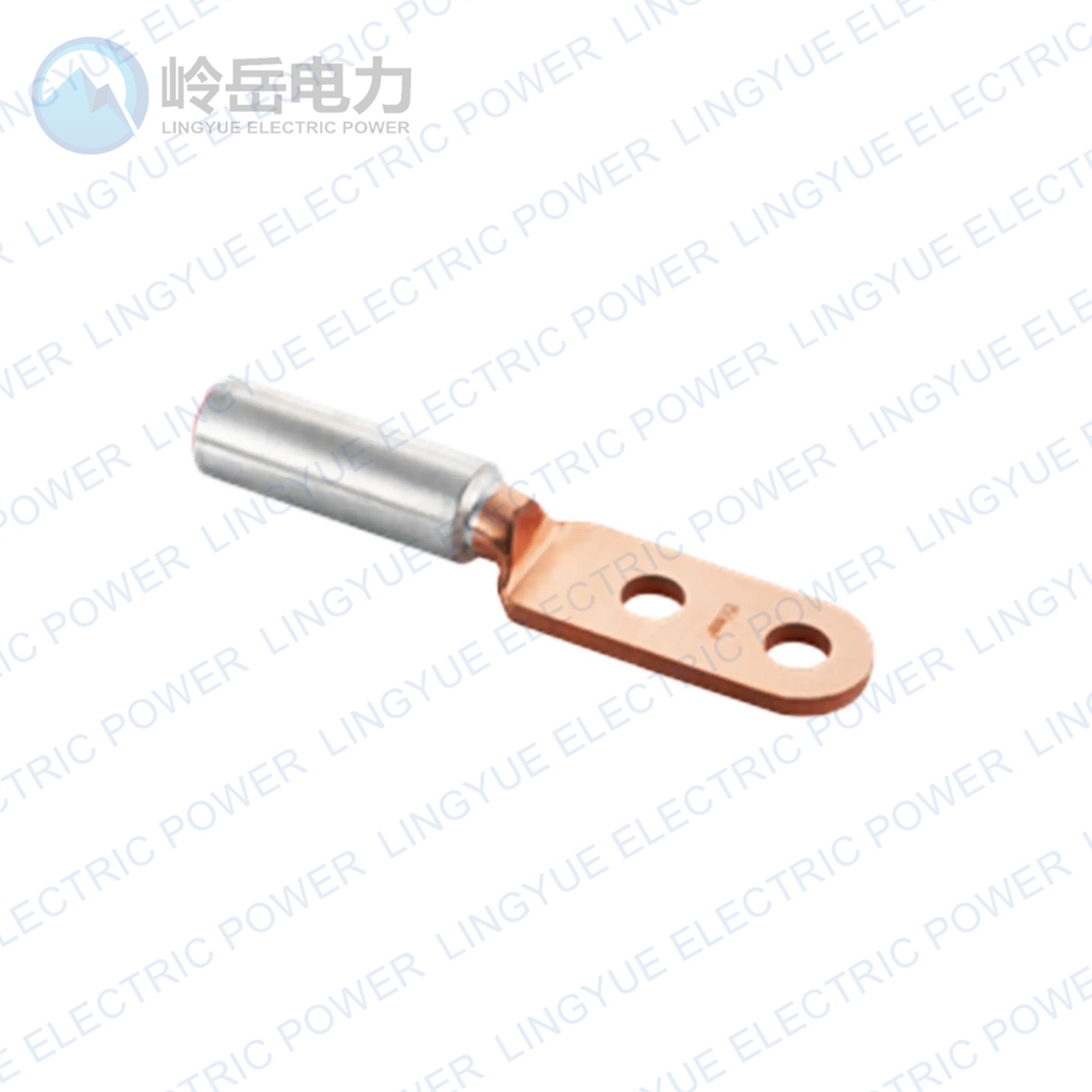

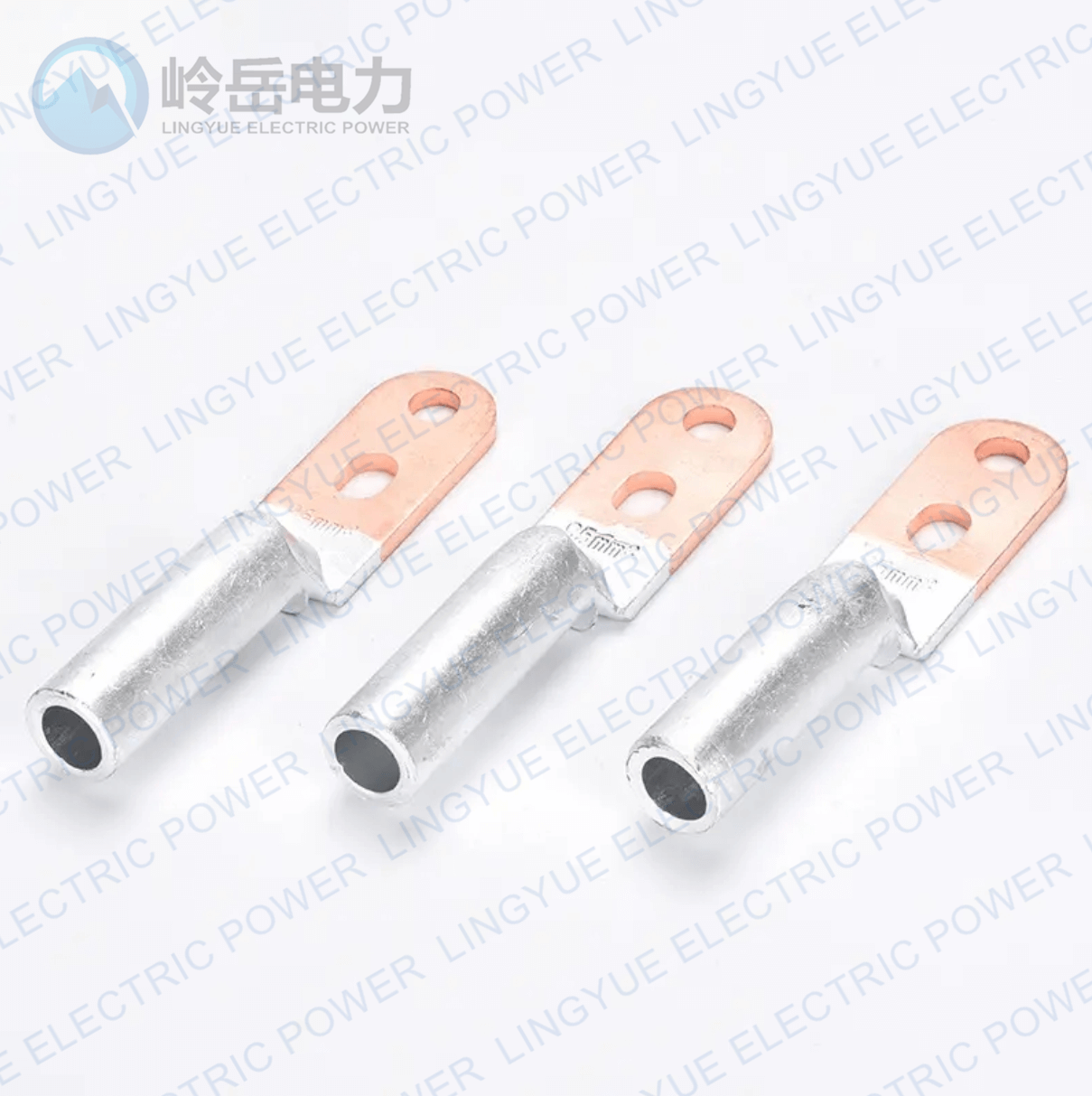

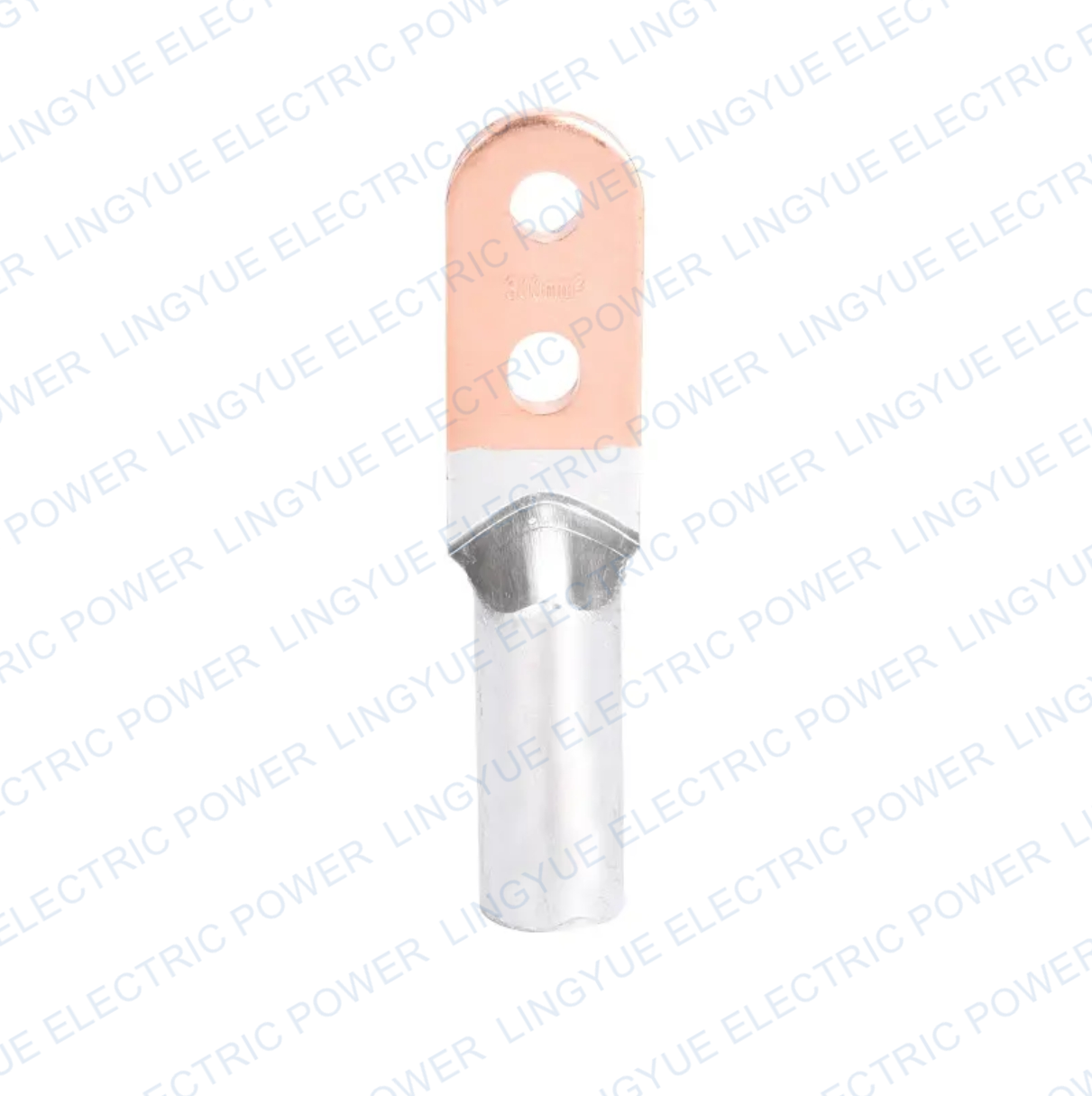

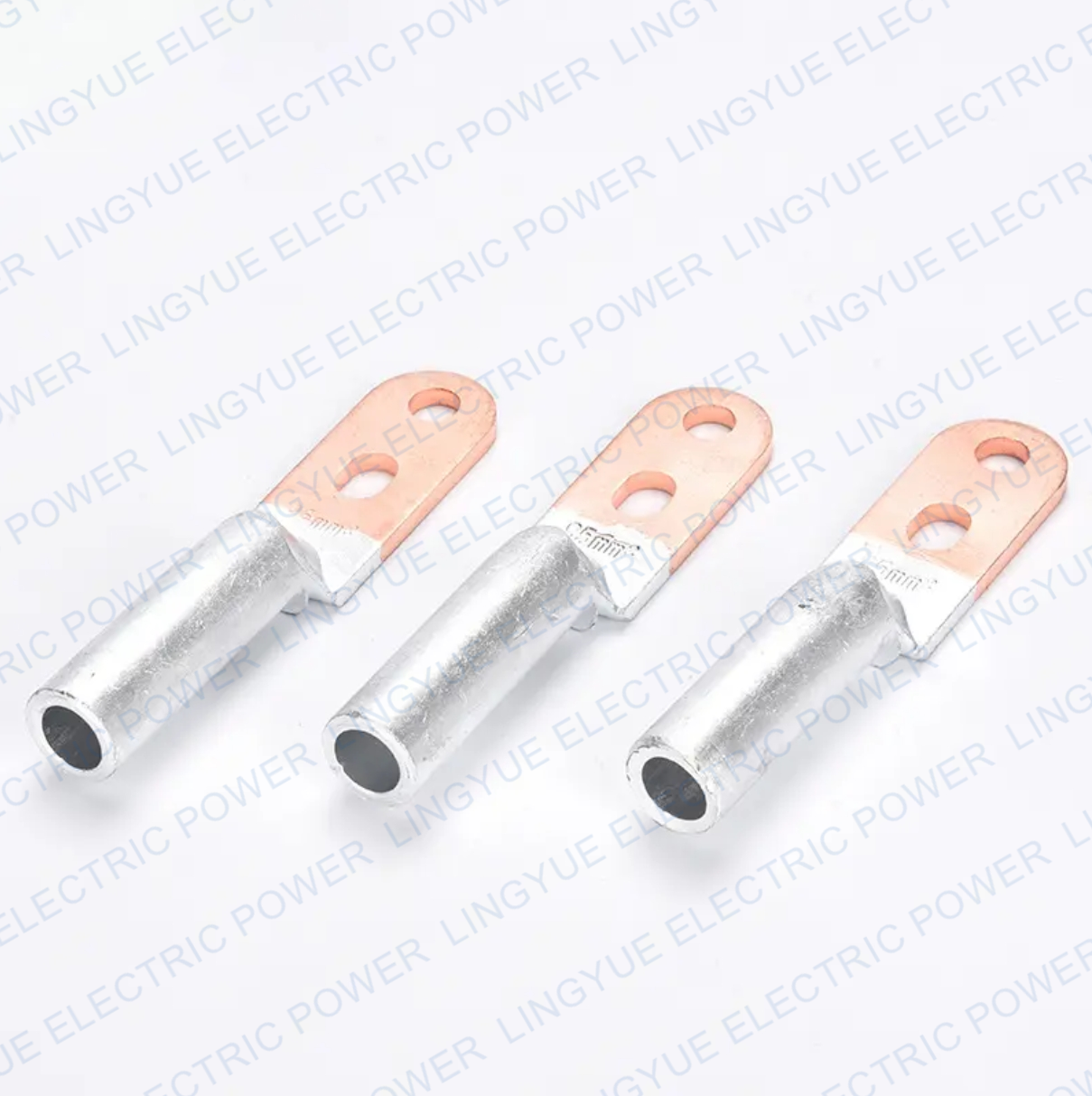

CU-AL Bimetallic Cable Lug (double holes)

1.The solid palm eliminates the ingress of moisture.
2.The barrels are chemically treated to reduce contact resistance and corrosion
refilled with jointing compound
3.Friction welded

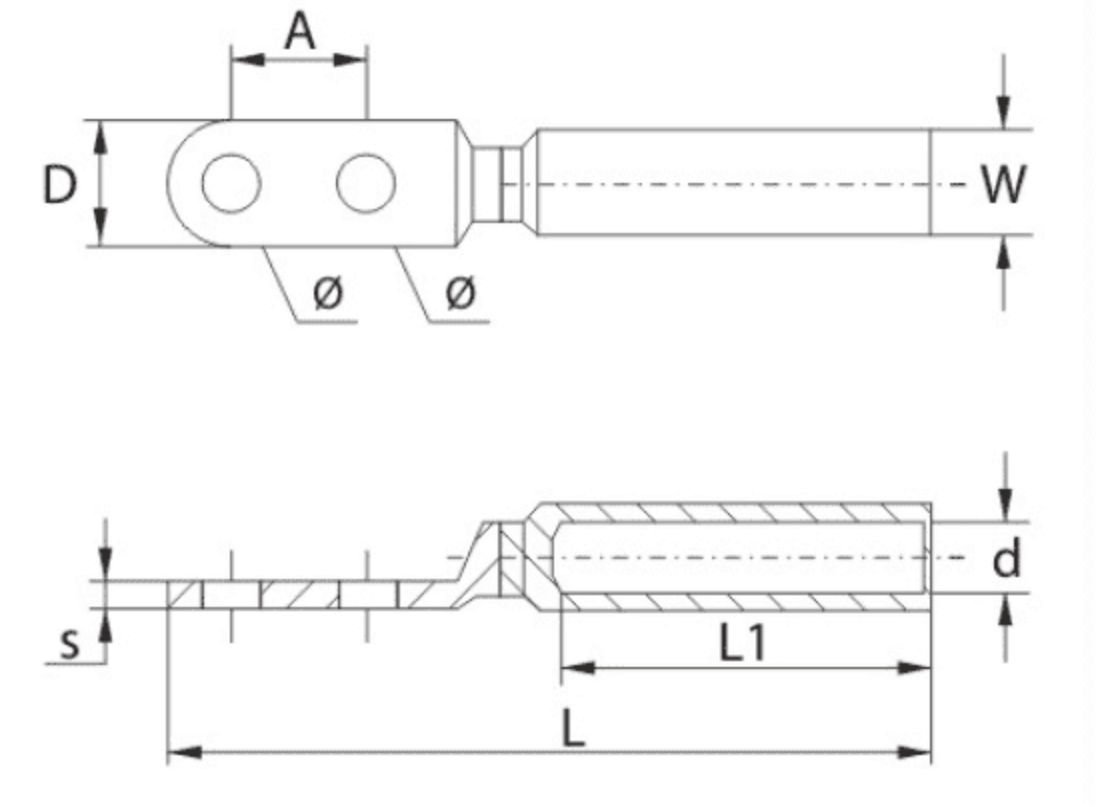

Item No.	Cable spec(mm2)	Dimensions(mm)							Note
		D	d	L1	L2	L	W	T
CASD35	35	14	8.5	40	50	155	26	4	Material: Al≥99.5% Cu≥99.9% Friction welding Can be OEM
CASD50	50	16	9.5	40	50	155	26	4.5
CASD70	70	18	11.5	40	50	155	26	5
CASD95	95	21	13.5	50	50	180	30	5.5
CASD120	120	23	15	50	50	180	30	6
CASD150	150	25	16.5	50	50	180	30	6
CASD185	185	28	18.5	60	50	200	40	7
CASD240	240	30	21	60	50	200	40	7

CASD SERIES TWO HOLES BIMETALLIC LUG ARE SUITABLE FOR TRANSITION CONNECTION OF THE CIRCULAR ALUMINUM WIRES, HEMICYCLES-SECTOR ALUMINUM WIRES, POWER SUPPLY CABLES IN THE DISTRIBUTION EQUIPMENT AND COPPER TERMINALS OF THE ELECTRICAL EQUIPMENT THEY ARE MADE FROM CU 99.9% PURITY AND AL 99.5 PURITY.
