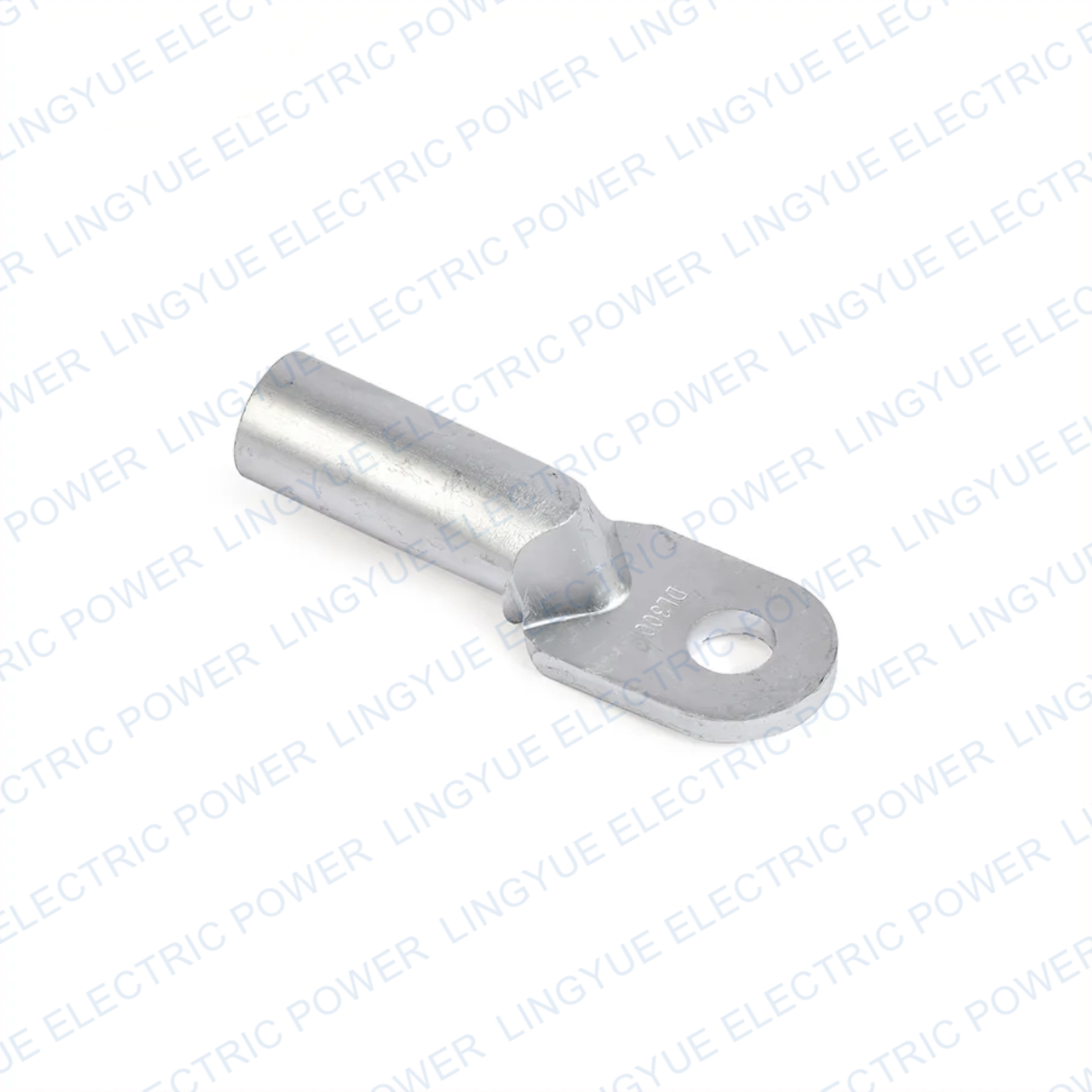

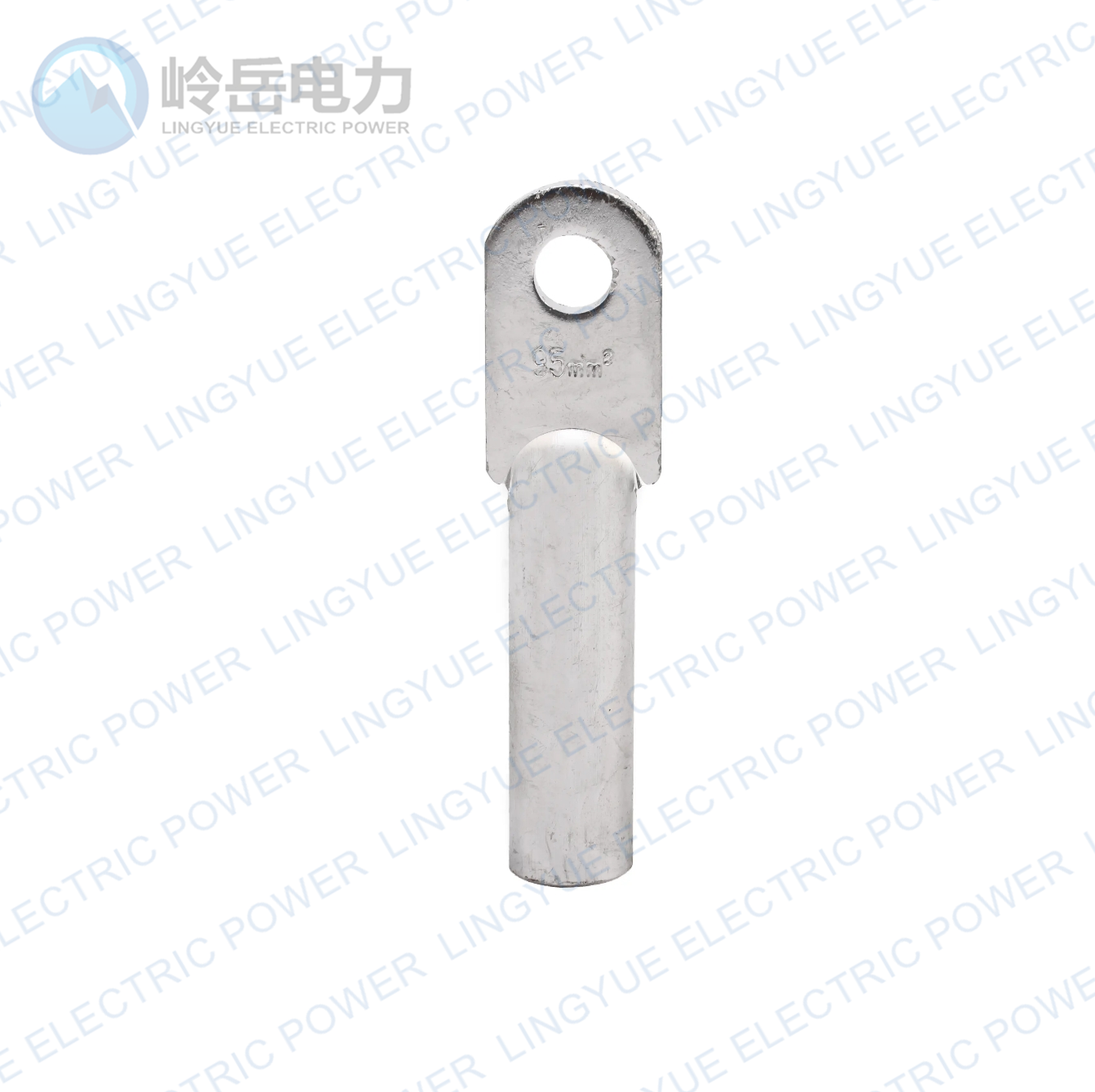

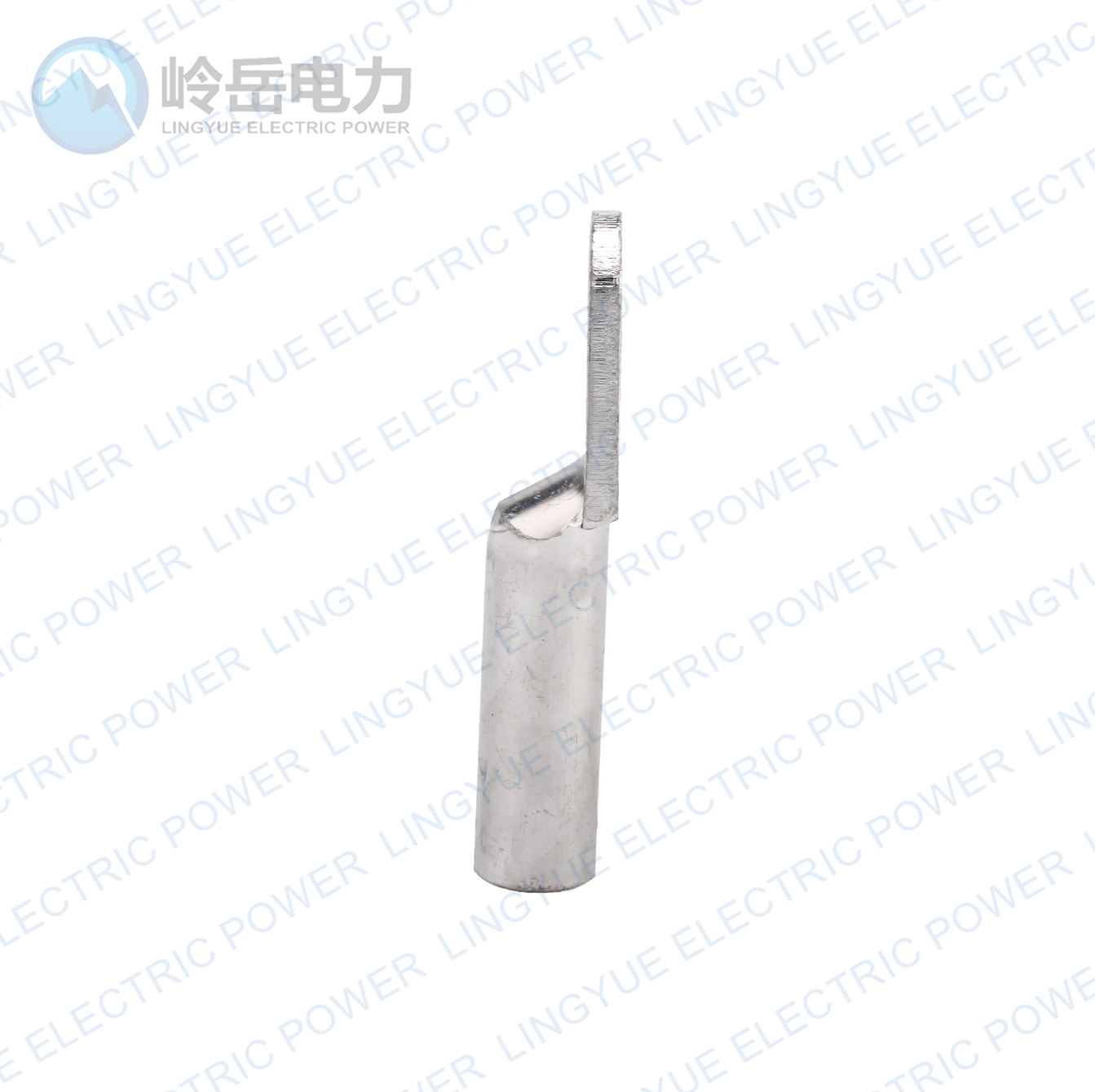

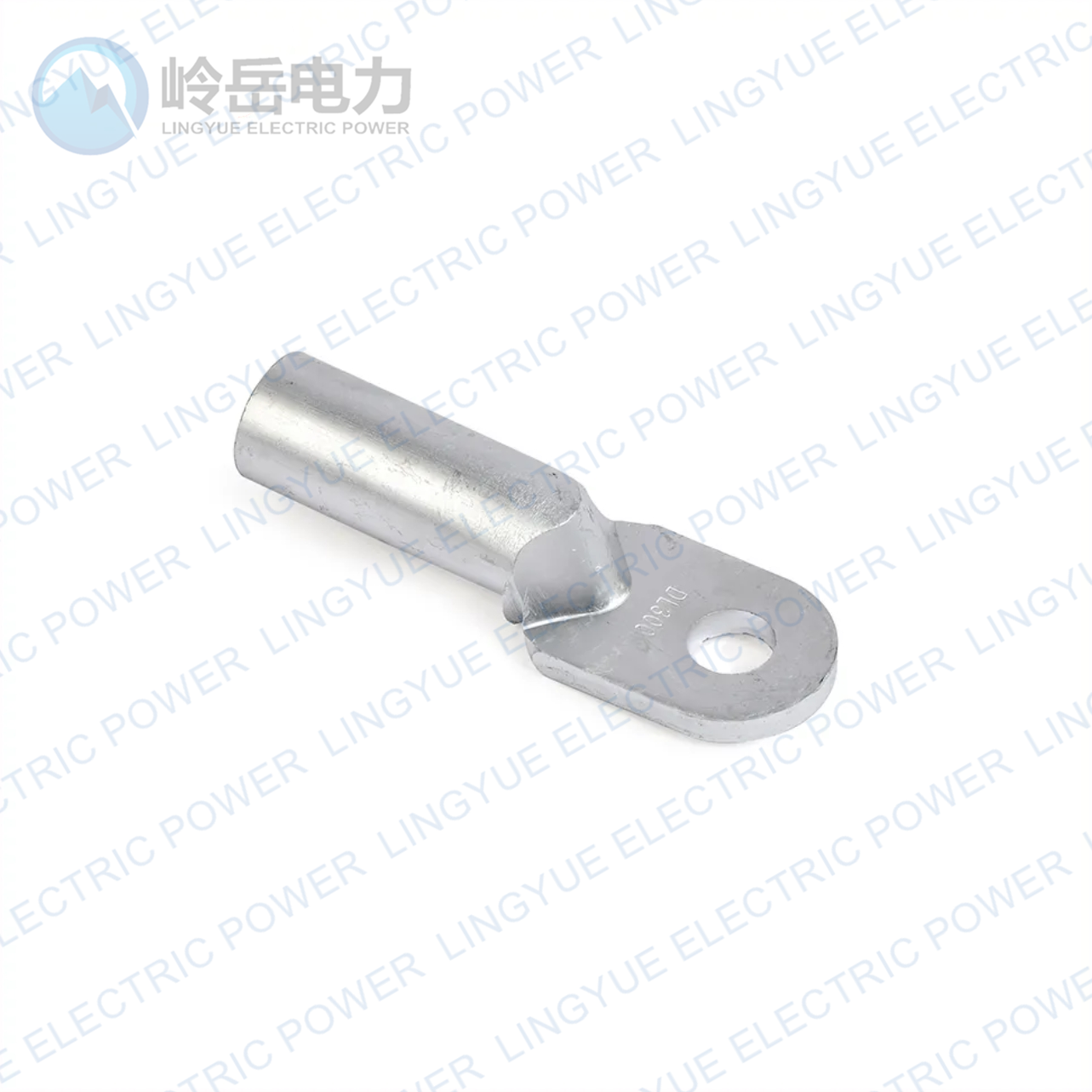

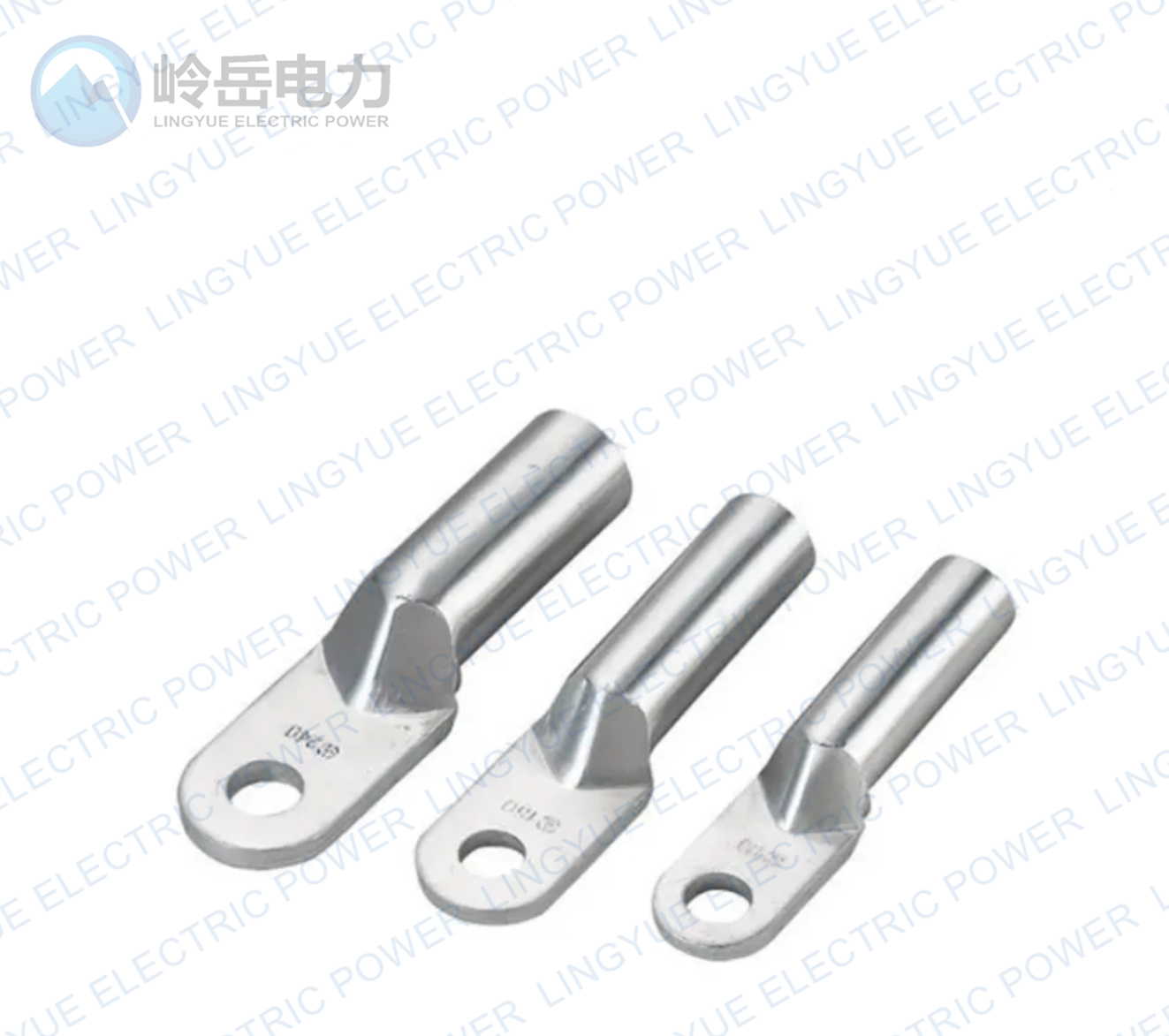

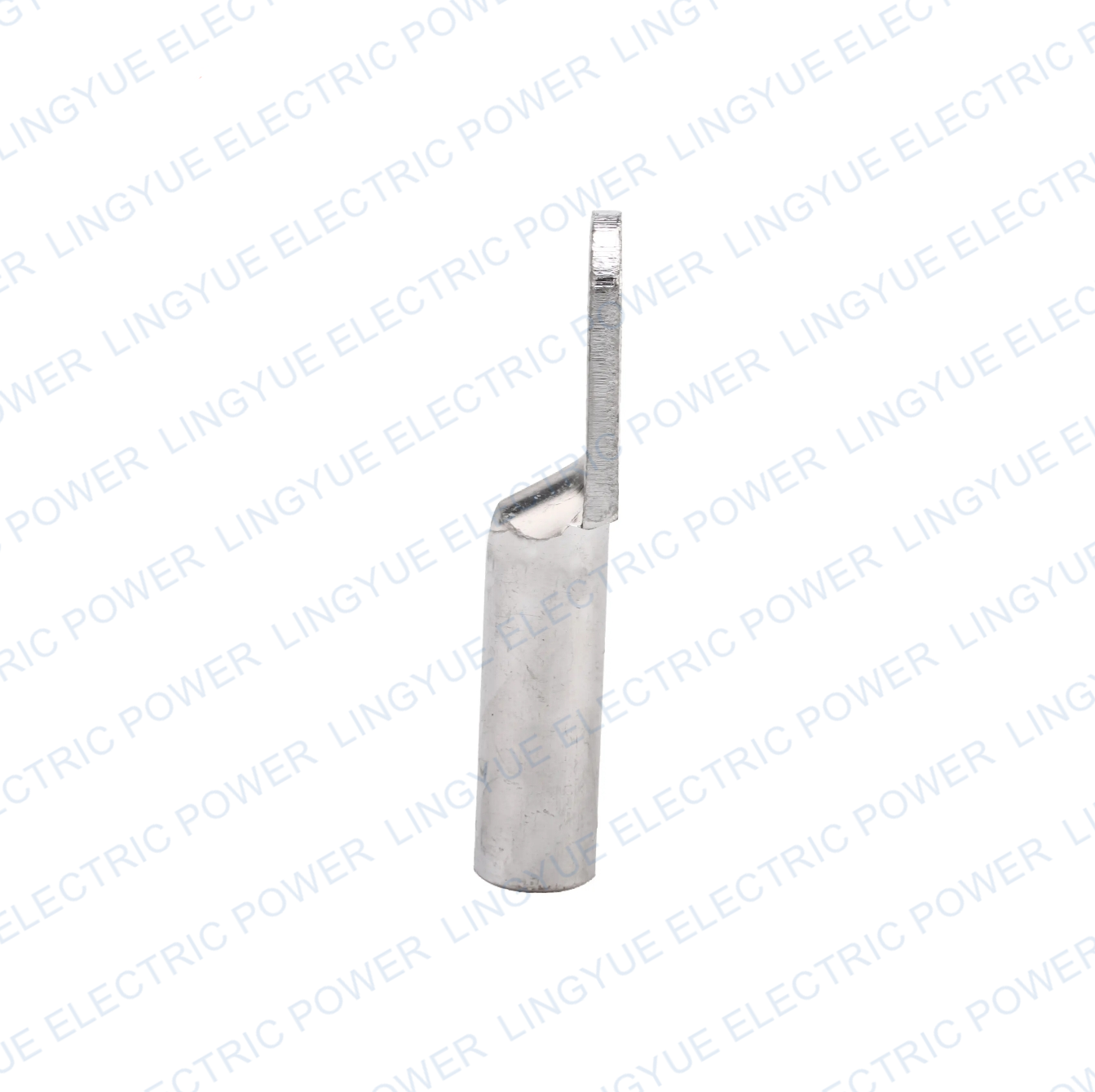

DL Aluminium Cable Lug

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Model Number:	DL
Material:	99.7% Pure Aluminum 1070
Application:	Connect conductor
Treatment:	Acid pickling
Standard:	EN60998
Certification:	ISO9001
Sample:	Available

It is commonly used for cable end connection and continuity, making the cable and electrical connection stronger and safer. The solid palm eliminates the ingress of moisture. The barrels are chemically treated to reduce contact resistance and corrosion. Surface: Acid pickling Application: Low voltage

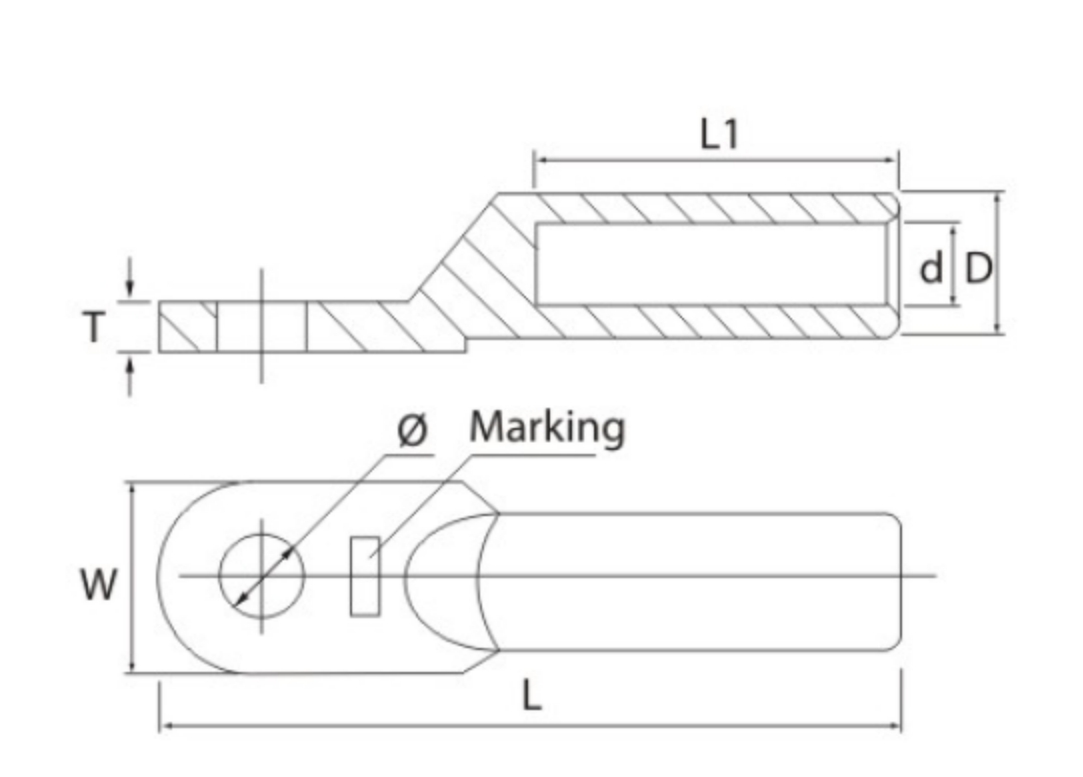

Item No.	Cable spec(mm²)	Dimensions(mm)
		D	d	L	L1	W	T	Ø	Note
DL16	16	11	6.4	70	32	16	4.5	8.5	Material: Al≥99.5%Can be OEM
DL25	25	12	7.4	75	35	18	4.5	8.5
DL35	35	14	8.7	85	39	20	4.8	10.5
DL50	50	16	9.7	90	40	23	5.5	10.5
DL70	70	18	11.7	100	43	26	5.5	12.5
DL95	95	20	13.7	112	50	28	5.8	12.5
DL120	120	22	15.2	120	52	30	6.5	14.5
DL150	150	24	16.7	126	55	34	6.7	14.5
DL185	185	27	18.7	133	60	37	7	17
DL240	240	30	21	140	61	40	7.2	17
DL300	300	34	23	165	65	50	7.5	21
DL400	400	38	26	170	70	50	8	21
DL500	500	40	29	190	75	60	10	21
DL630	630	45	34	220	80	60	10.5	21
DL800	800	60	38	250	100	80	11	21
