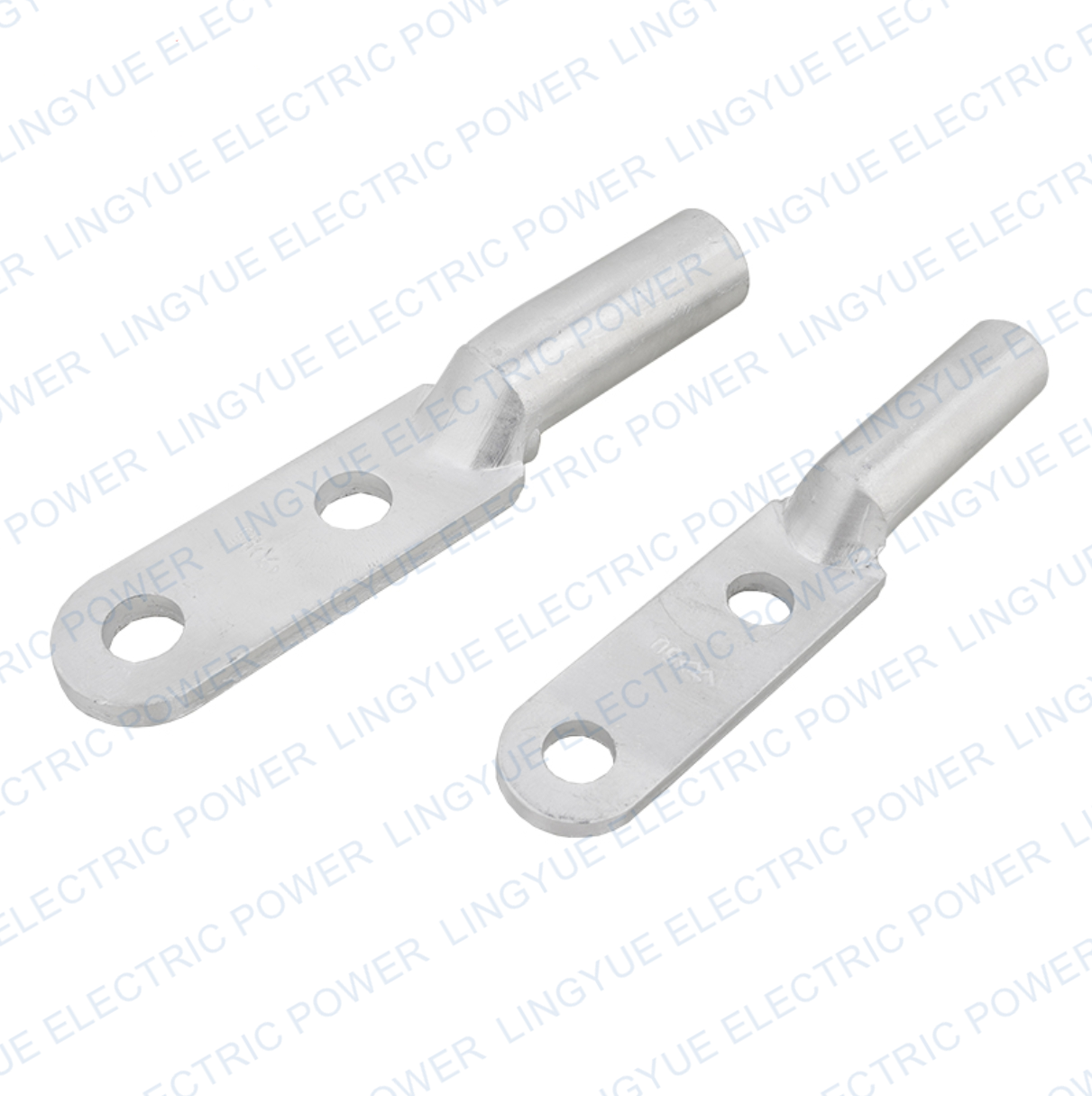

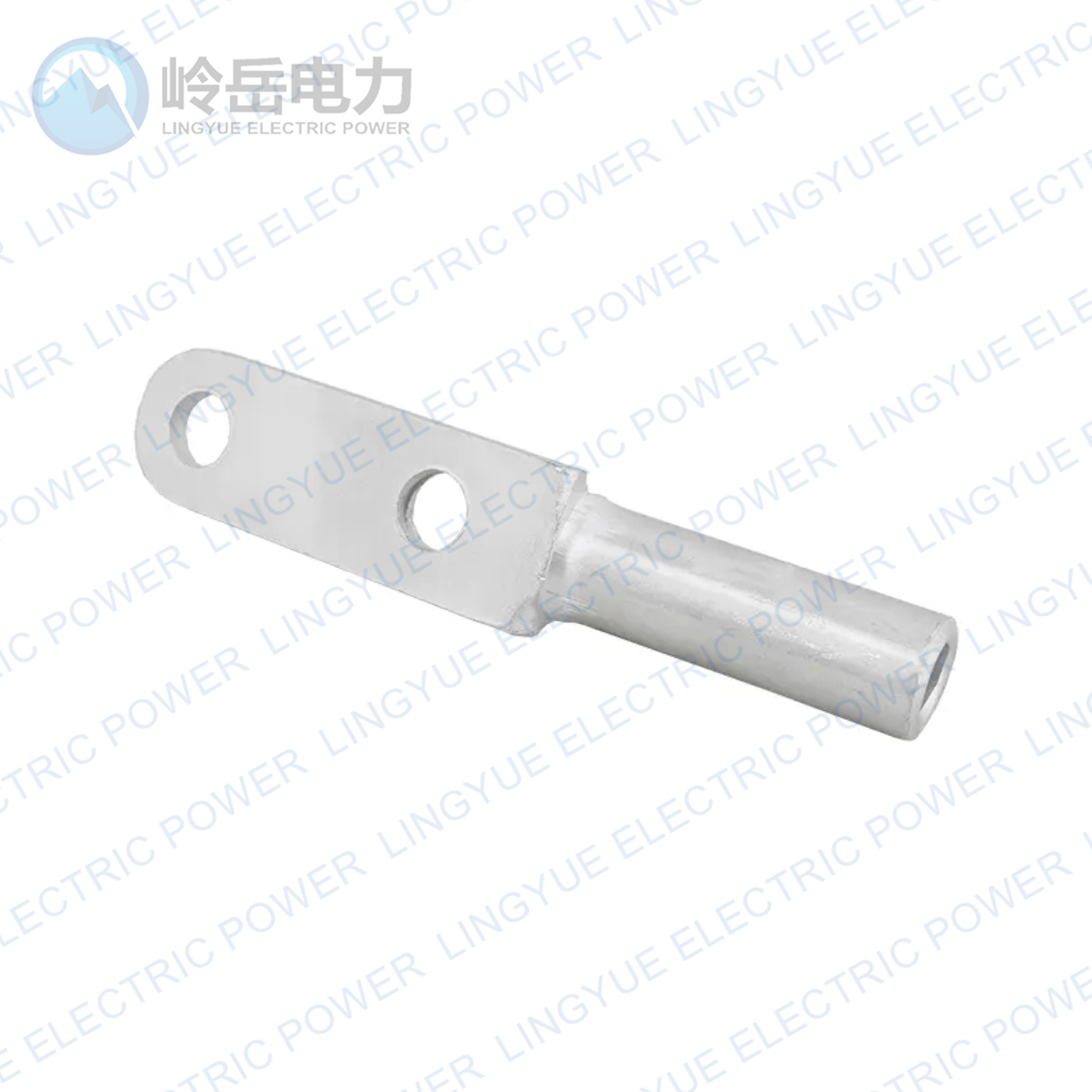

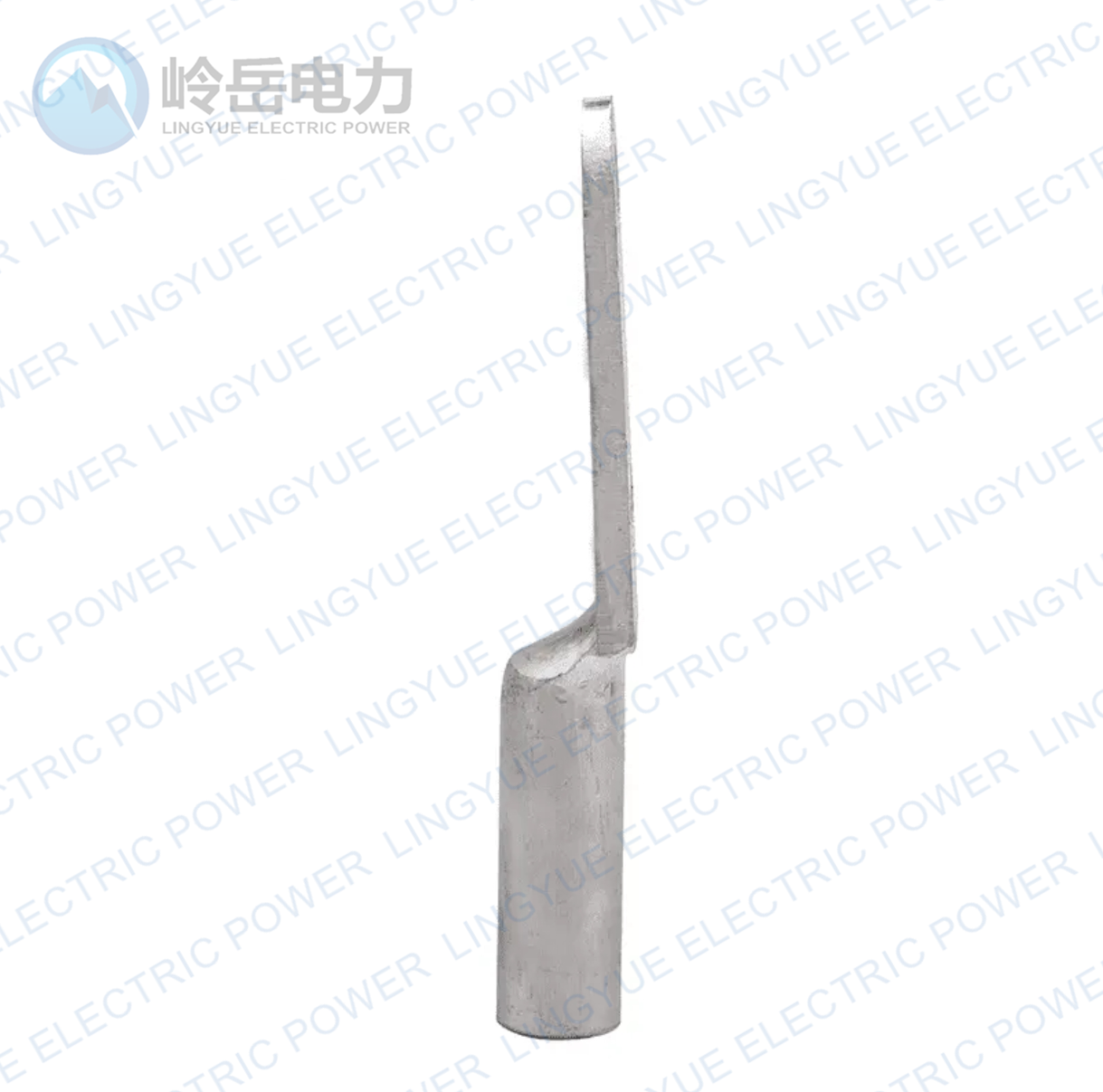

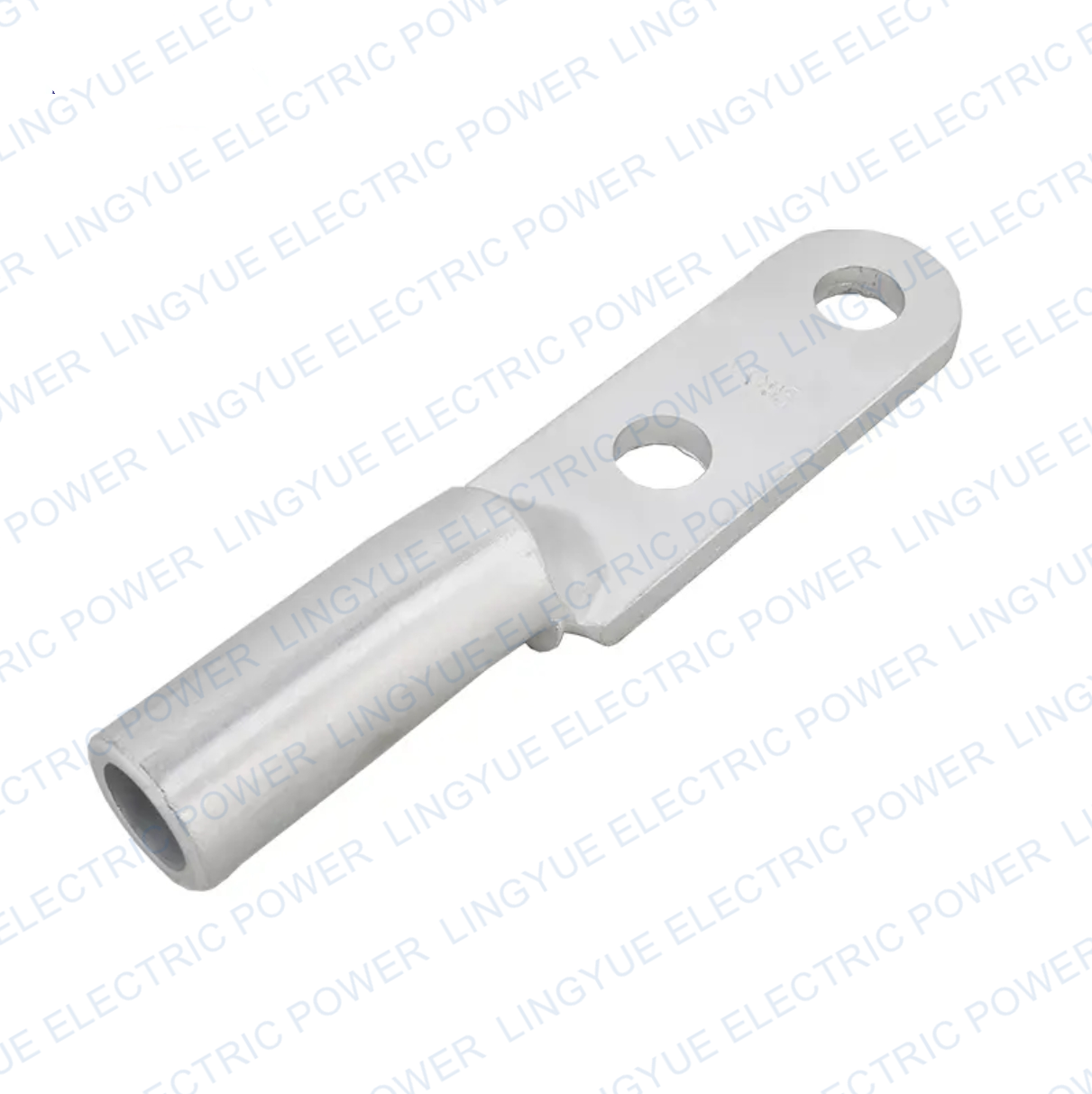

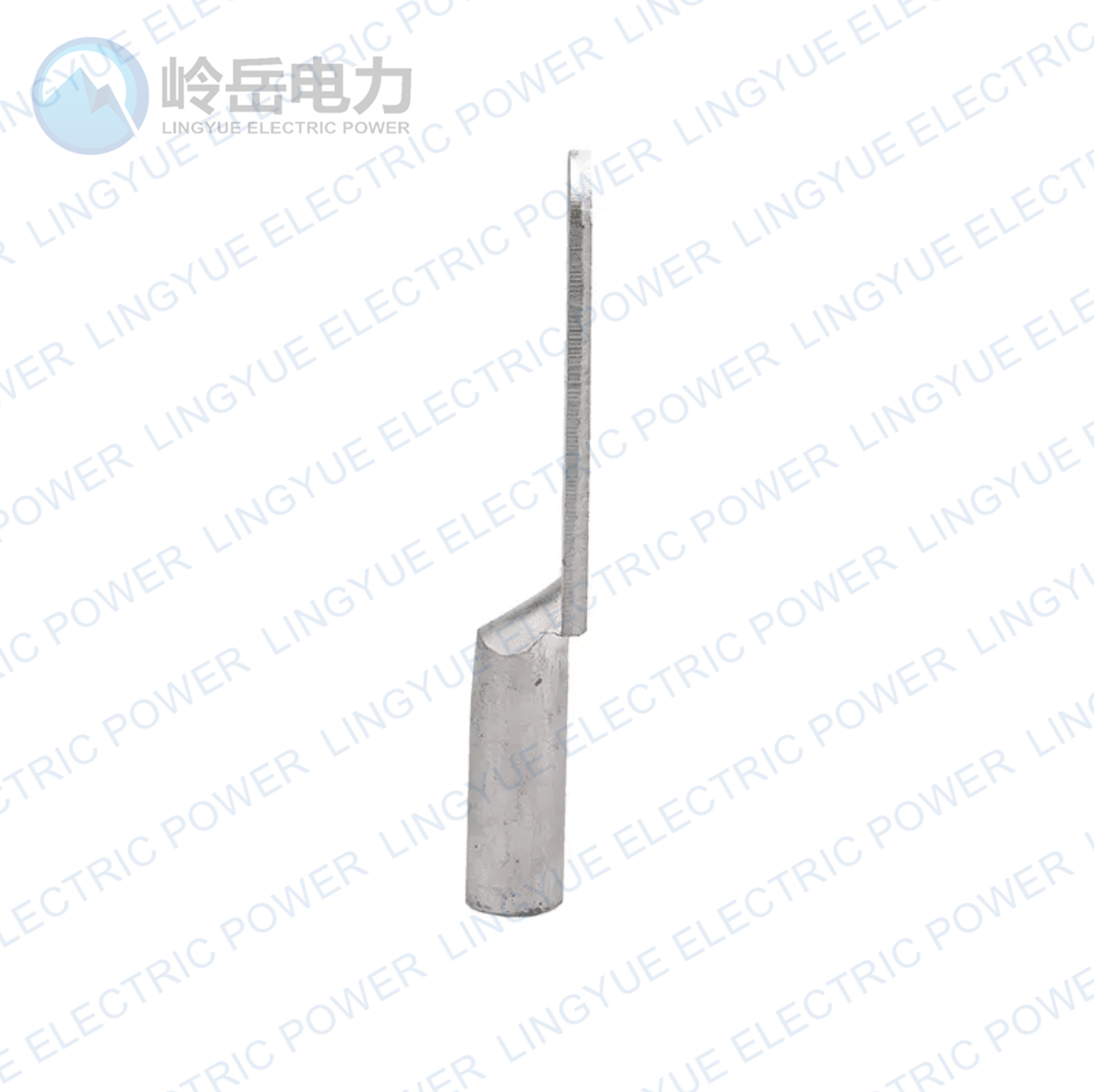

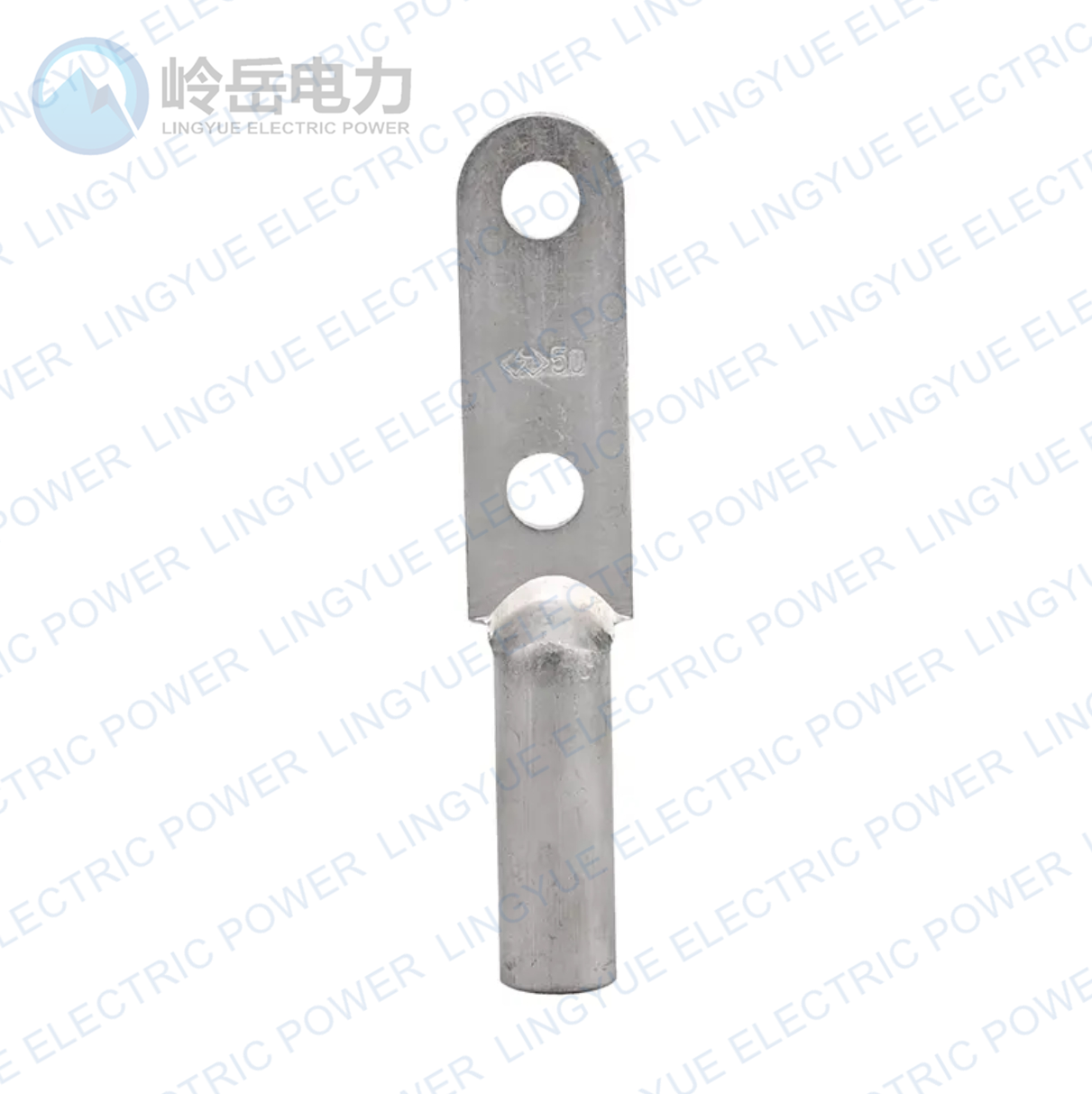

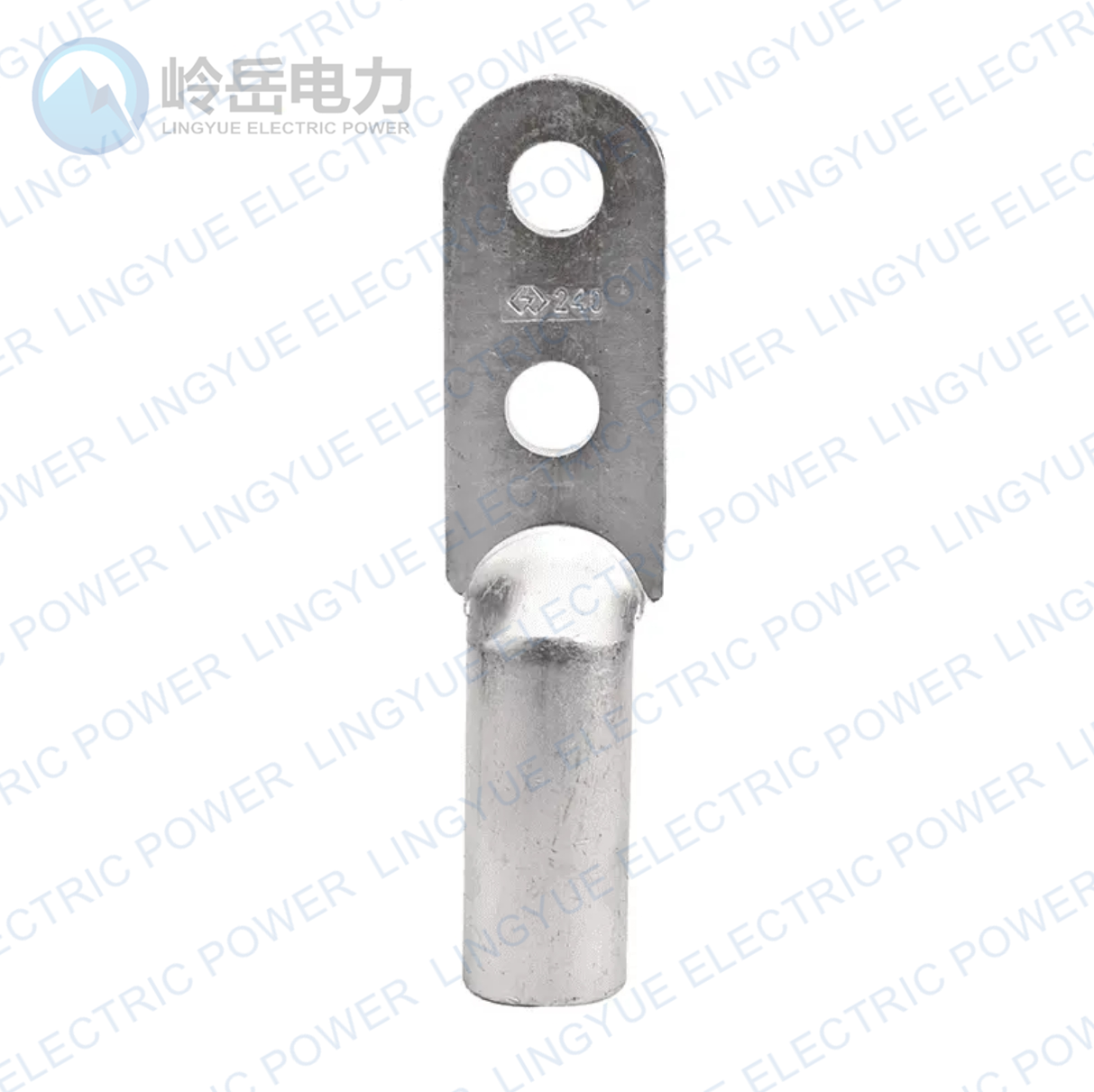

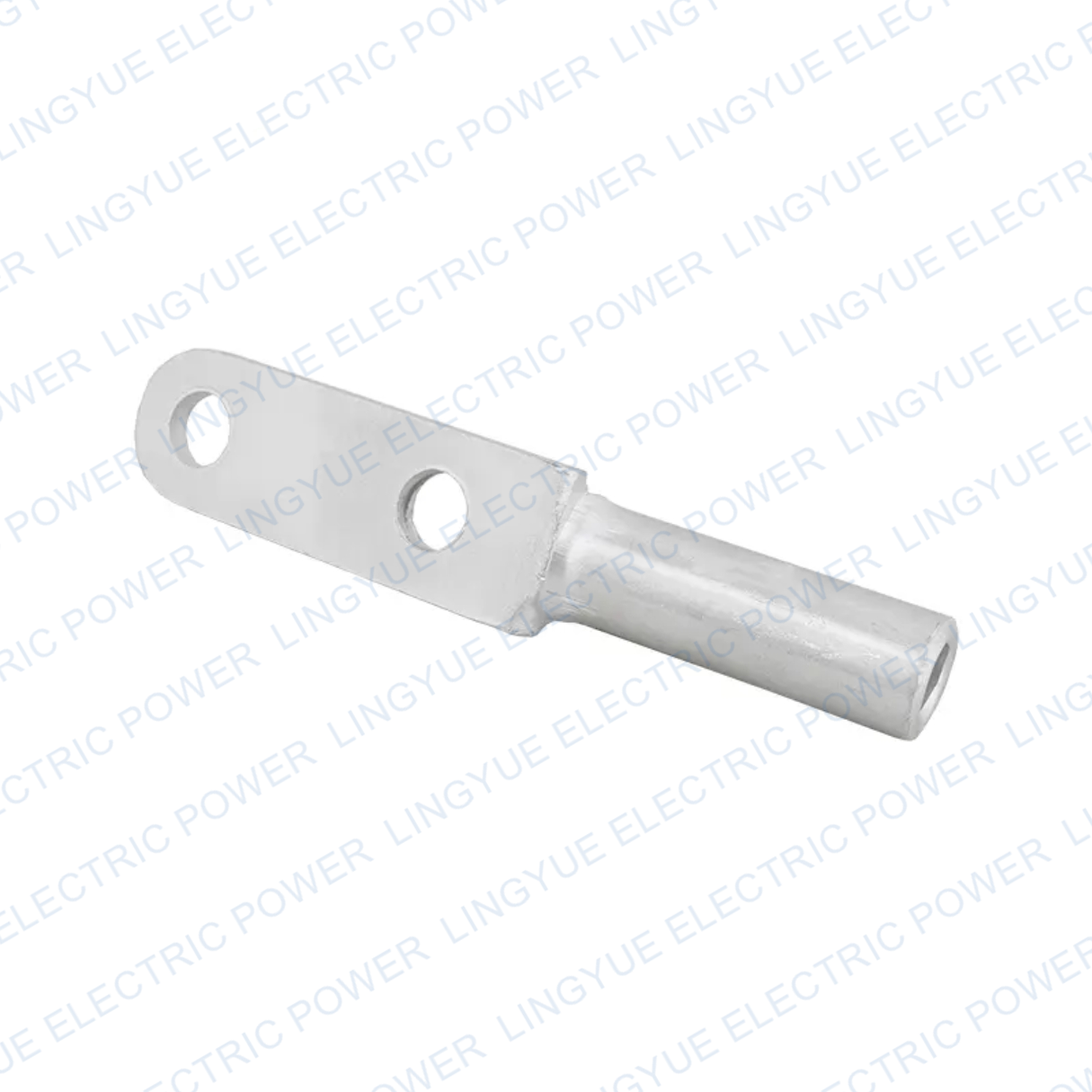

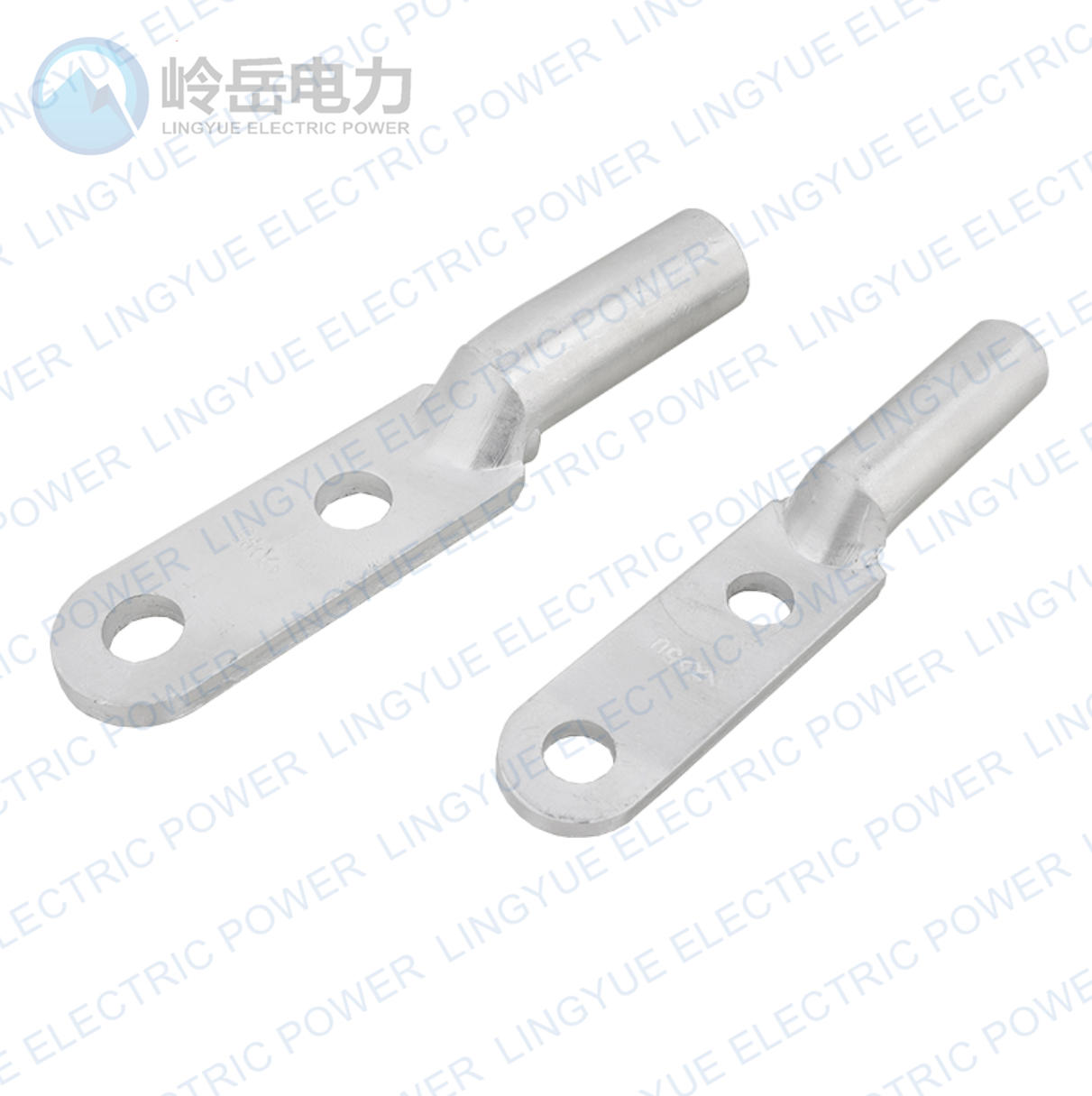

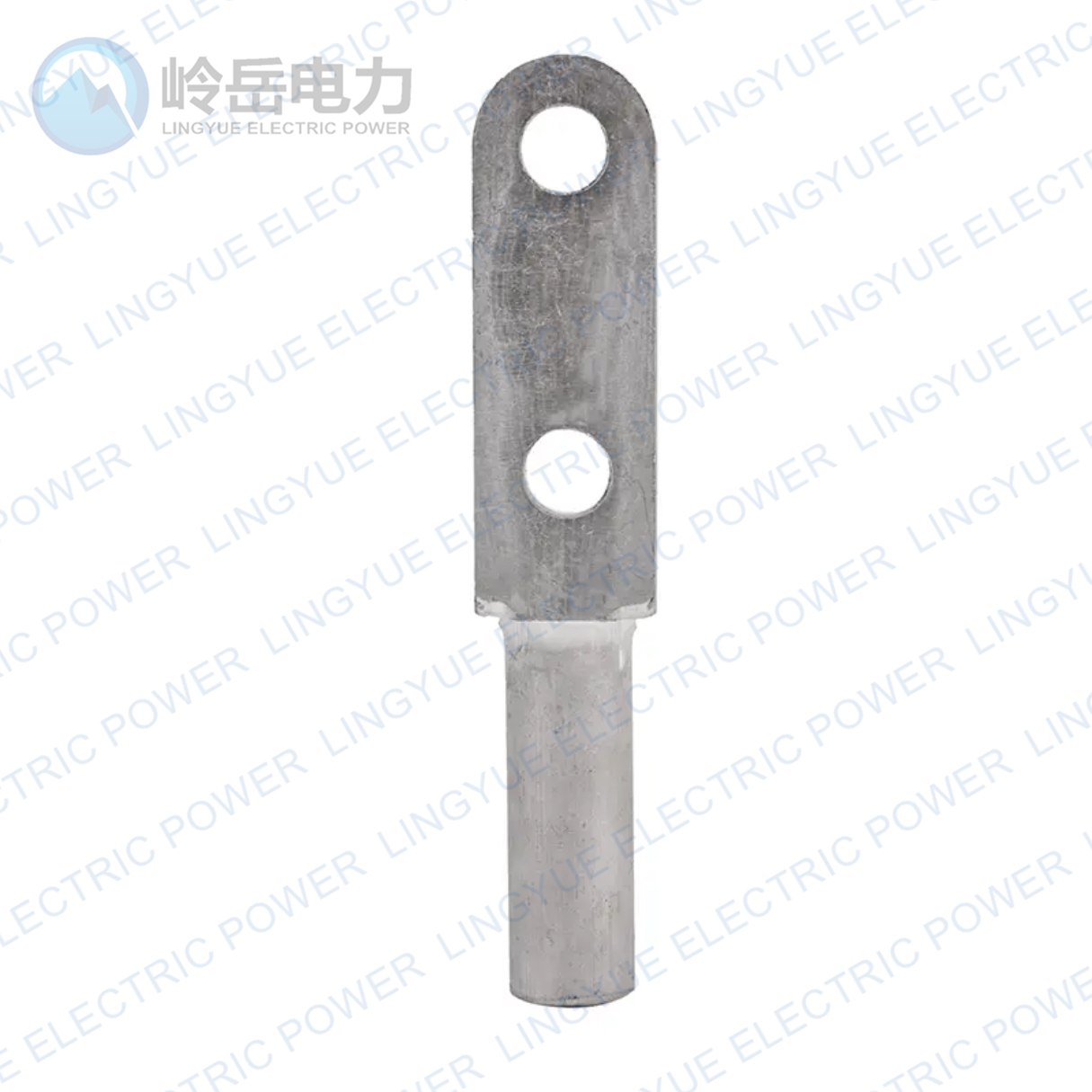

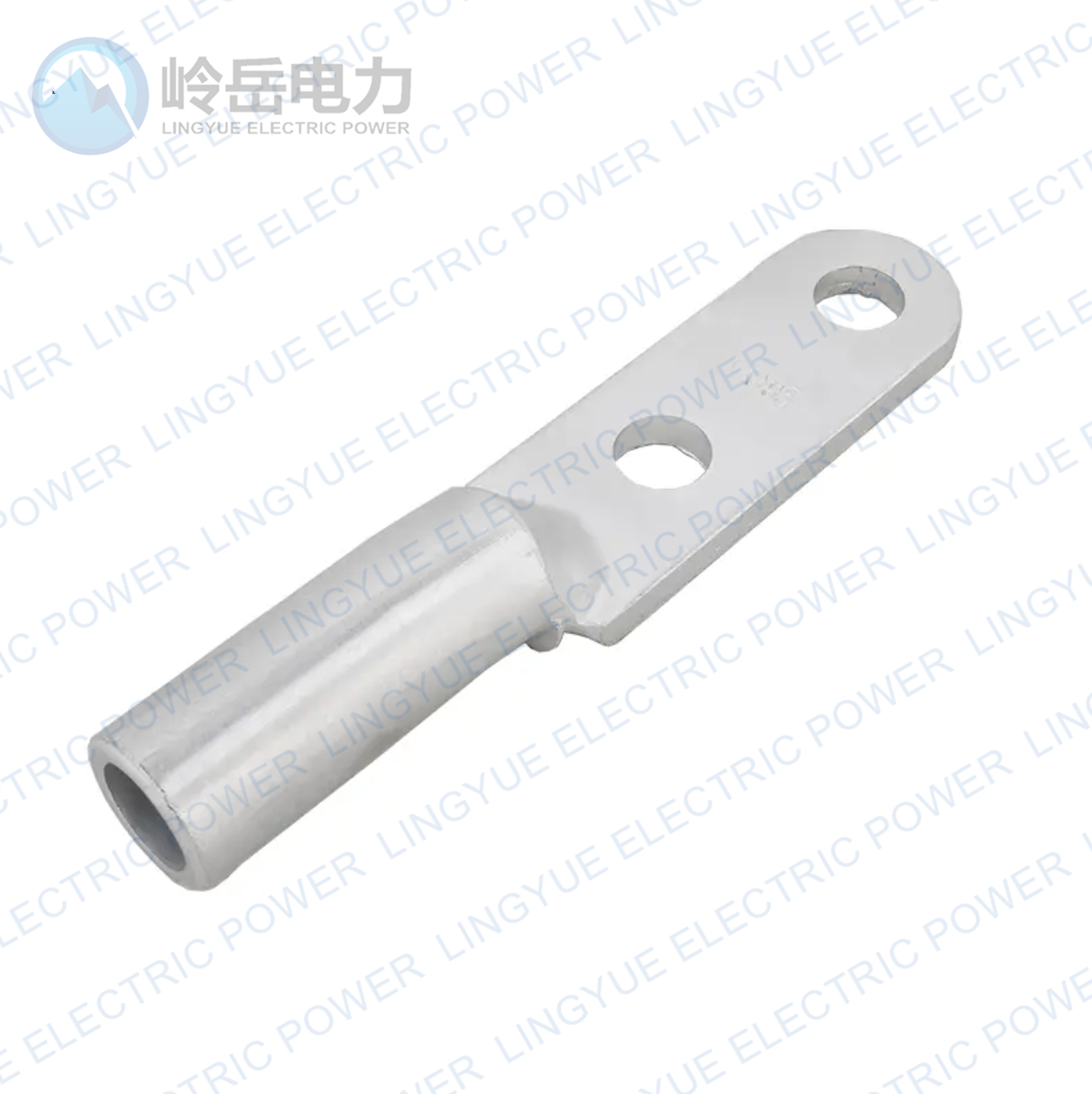

DLD 2 holes aluminium cable terminal lug

DLD 2 holes aluminium cable terminal lug

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

DLD Aluminium Electrical Cable Lugs with two holes are used to connect tap conductor to power equipment (transformer, circuit breaker, disconnect switch. etc) or to wall bushing of substation.

Aluminum connectors are also used to connect the tap conductor of T-connector. The conductors include compressive-type and bolted, both types have angle of 0°, 30°and 90° with the direction of tap conductor.

Item No.	Cable spec(mm2)	Dimensions(mm)
Item No.	Cable spec(mm2)	D	d	L1	L2	L3	L4	L5	L	W	T	φ×2
DLD16	16	11	6.4	33	45	43	25	8	88	16	4.5	8.5
DLD25	25	12	7.4	34	46	44	25	9	90	18	4.5	8.5
DLD35	35	14	8.7	36	48	62	40	10	110	20.5	4.8	10.5
DLD50	50	16	9.7	38	52	63	40	11.5	115	23	5.5	10.5
DLD70	70	18	11.7	43	59	68	40	13	127	26	5.5	12.5
DLD95	95	20	13.7	48	63	70	40	14	133	28	5.8	12.5
DLD120	120	22	15.2	50	68	72	40	15	140	30	6.5	14.5
DLD150	150	24	16.7	55	73	77	40	17	150	34	6.7	14.5
DLD185	185	27	18.7	57	82	78	40	18.5	160	37	7	17
DLD240	240	30	21	57	84	80	40	20	164	40	7.2	17
DLD300	300	34	23	67	90	95	40	25	185	50	7.5	17
DLD400	400	38	25.5	75	115	100	45	26	215	55	8	21
DLD500	500	40	28.5	77	120	100	45	26	220	55	10	21
DLD630	630	45	33	80	125	105	45	28	230	60	10.5	21
