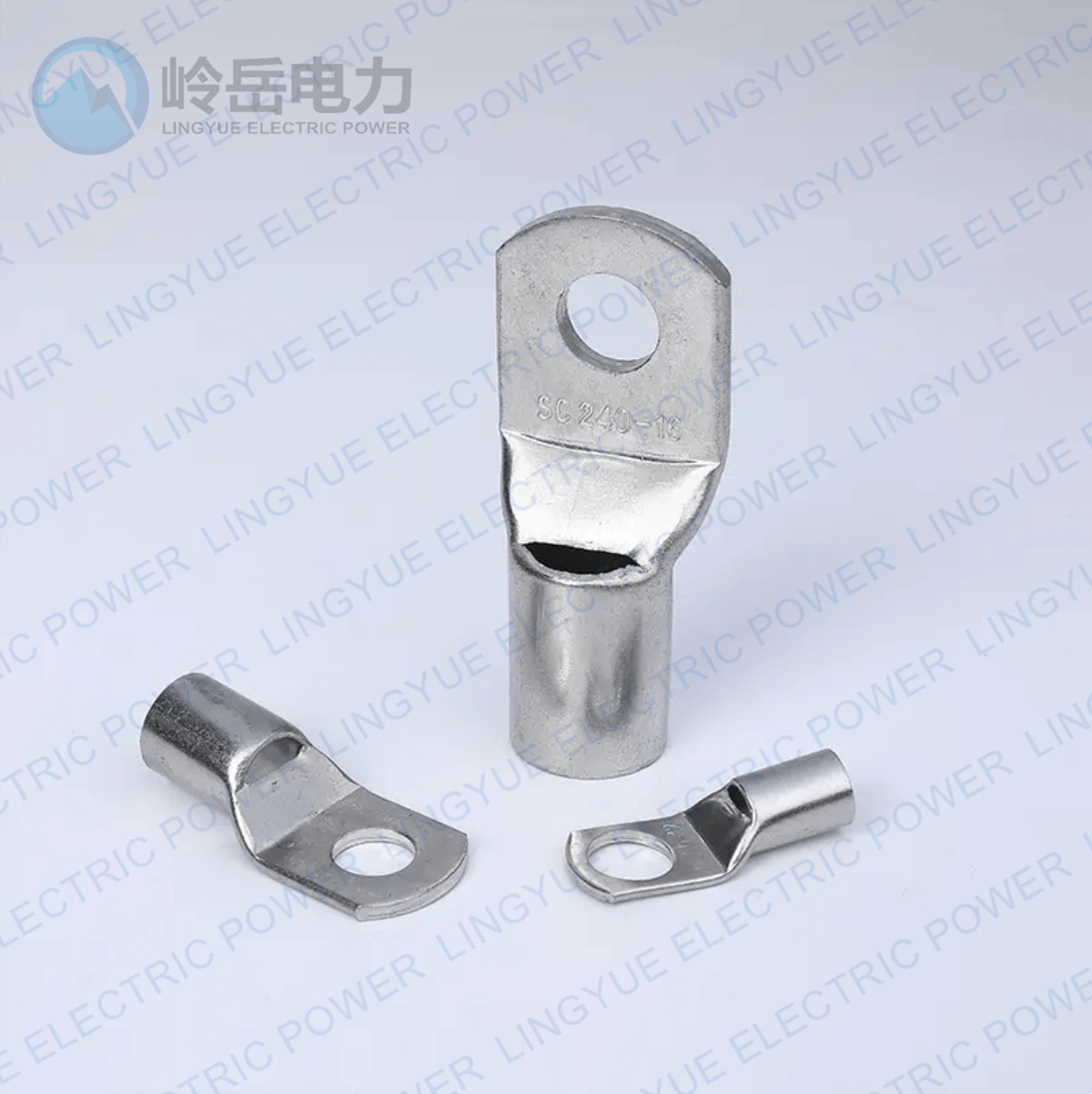

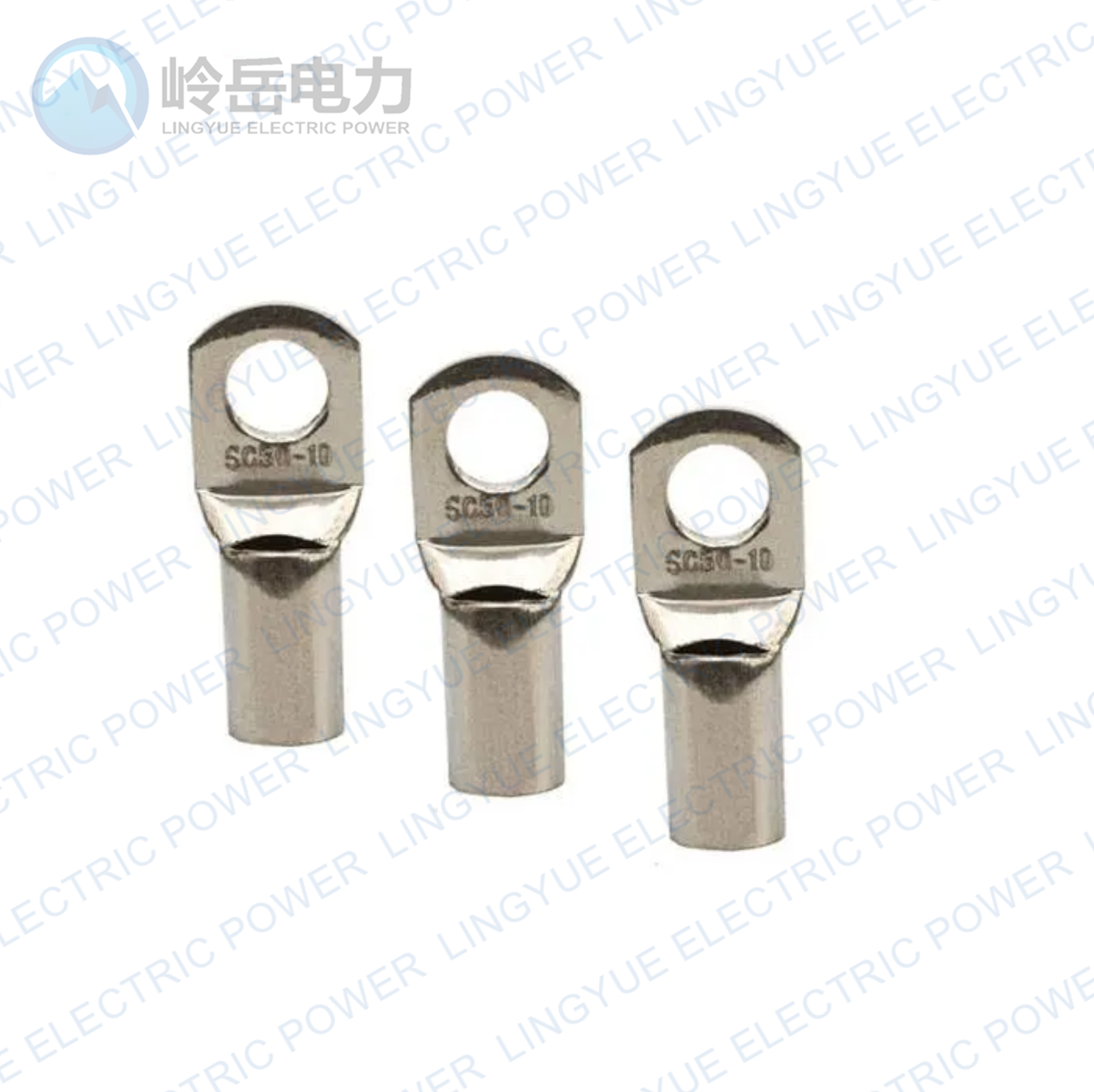

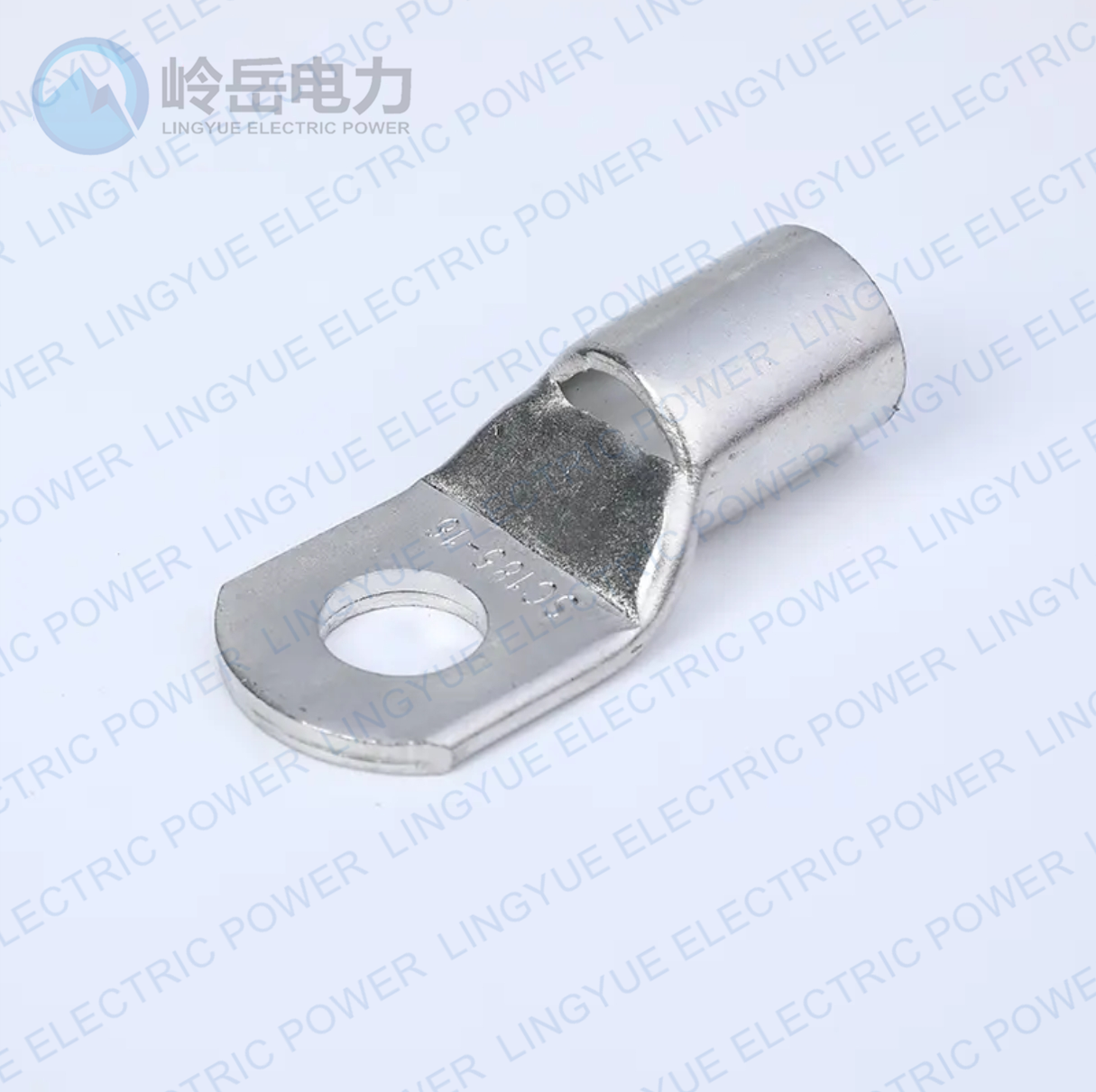

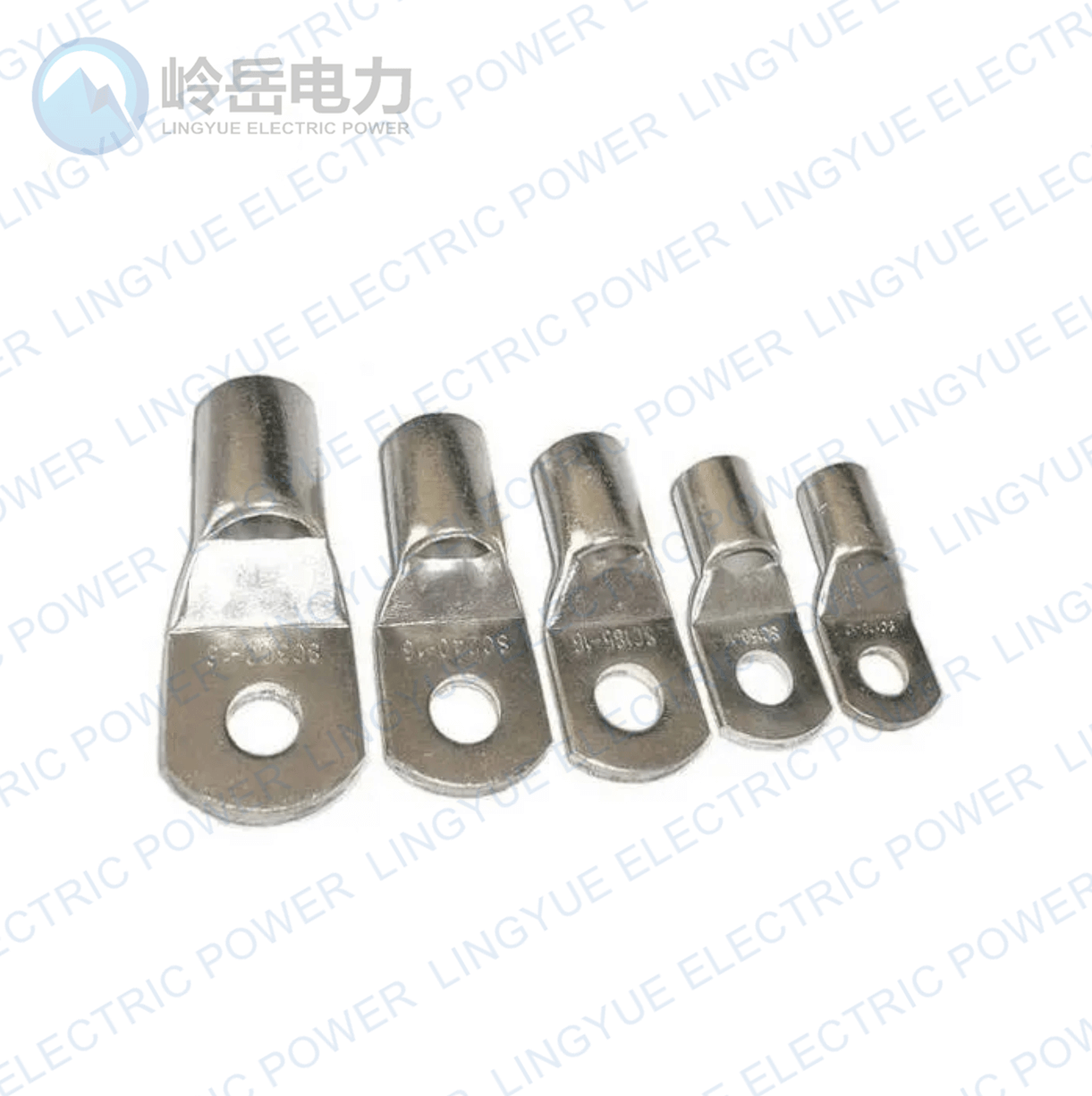

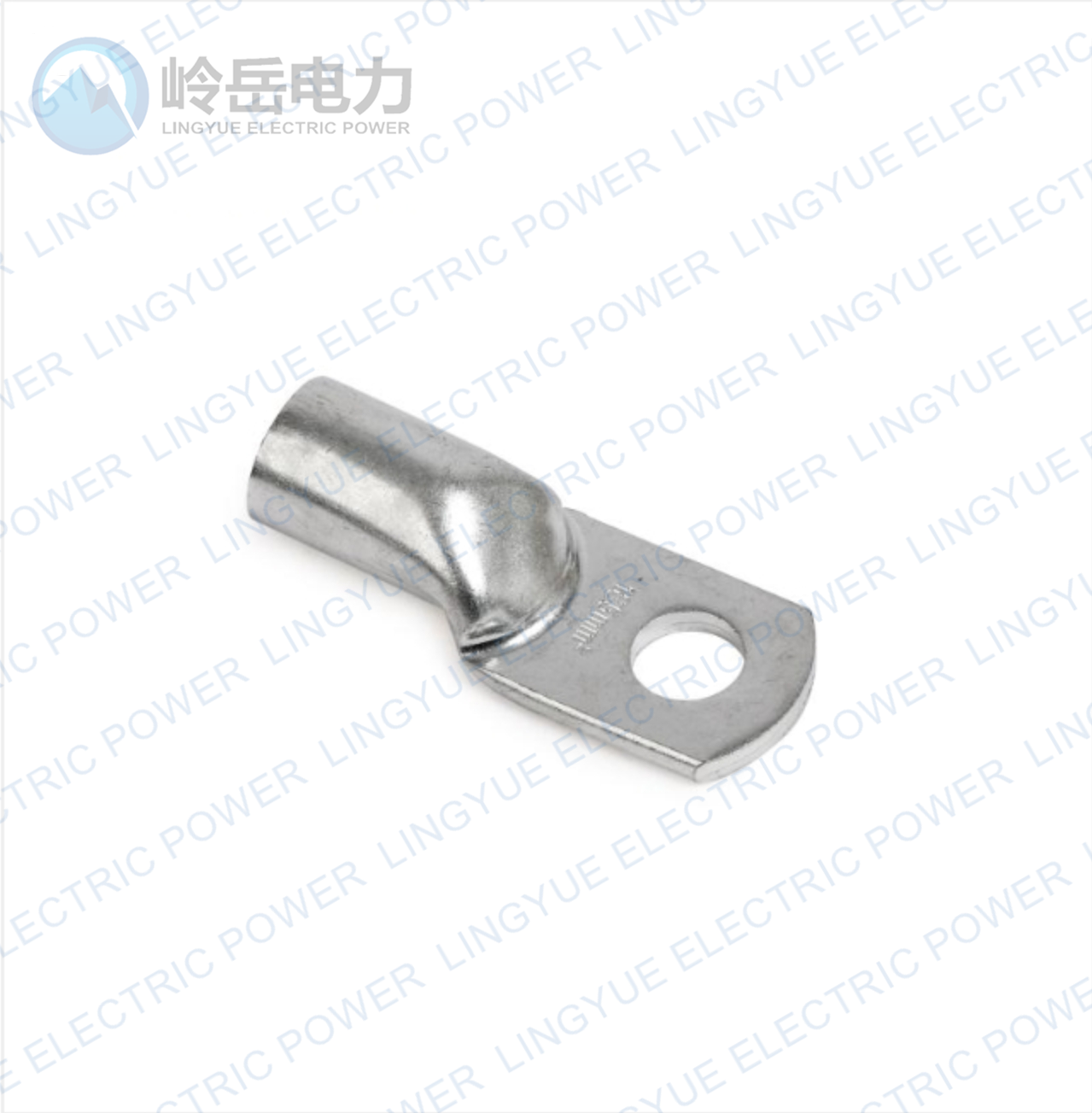

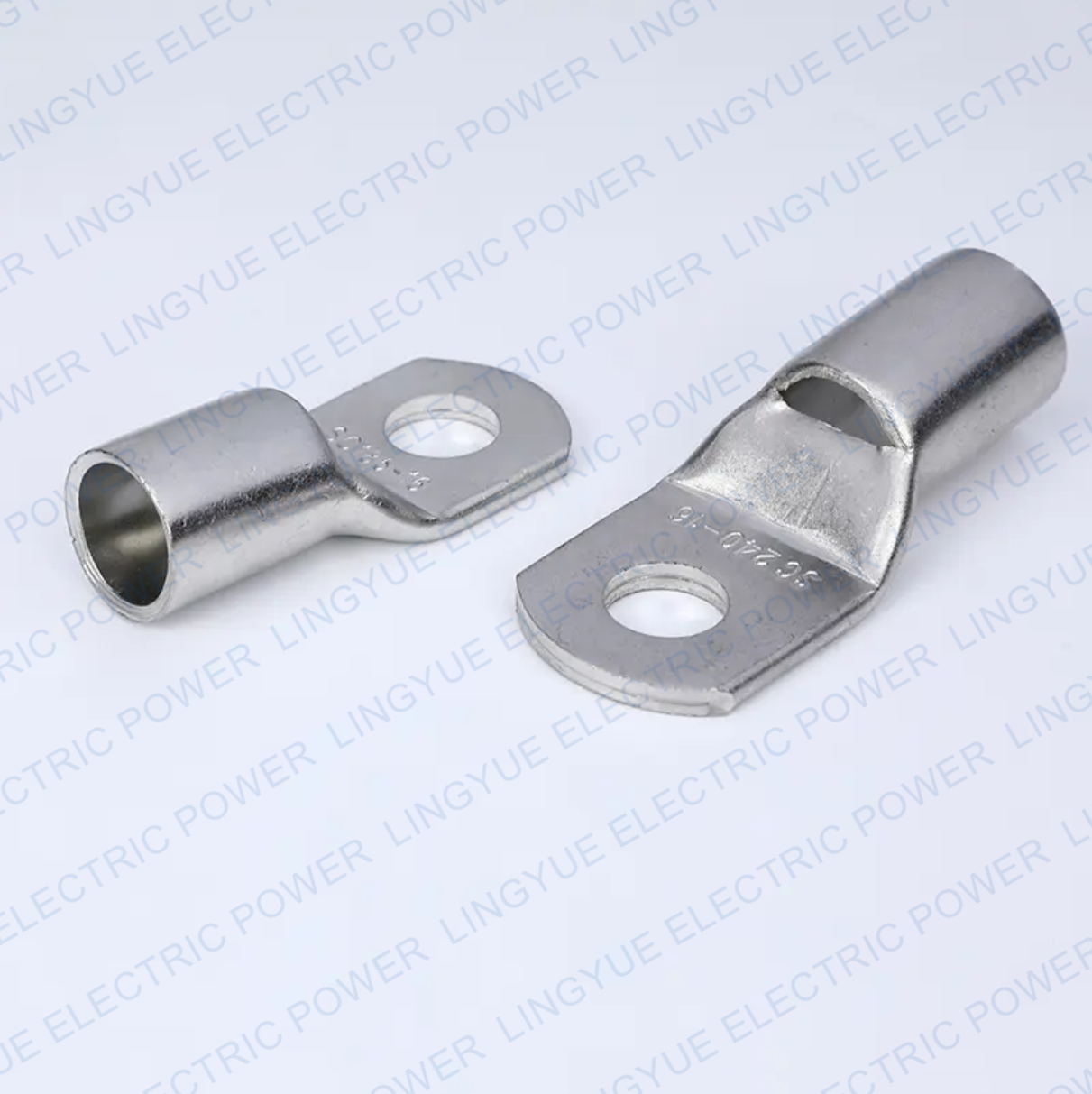

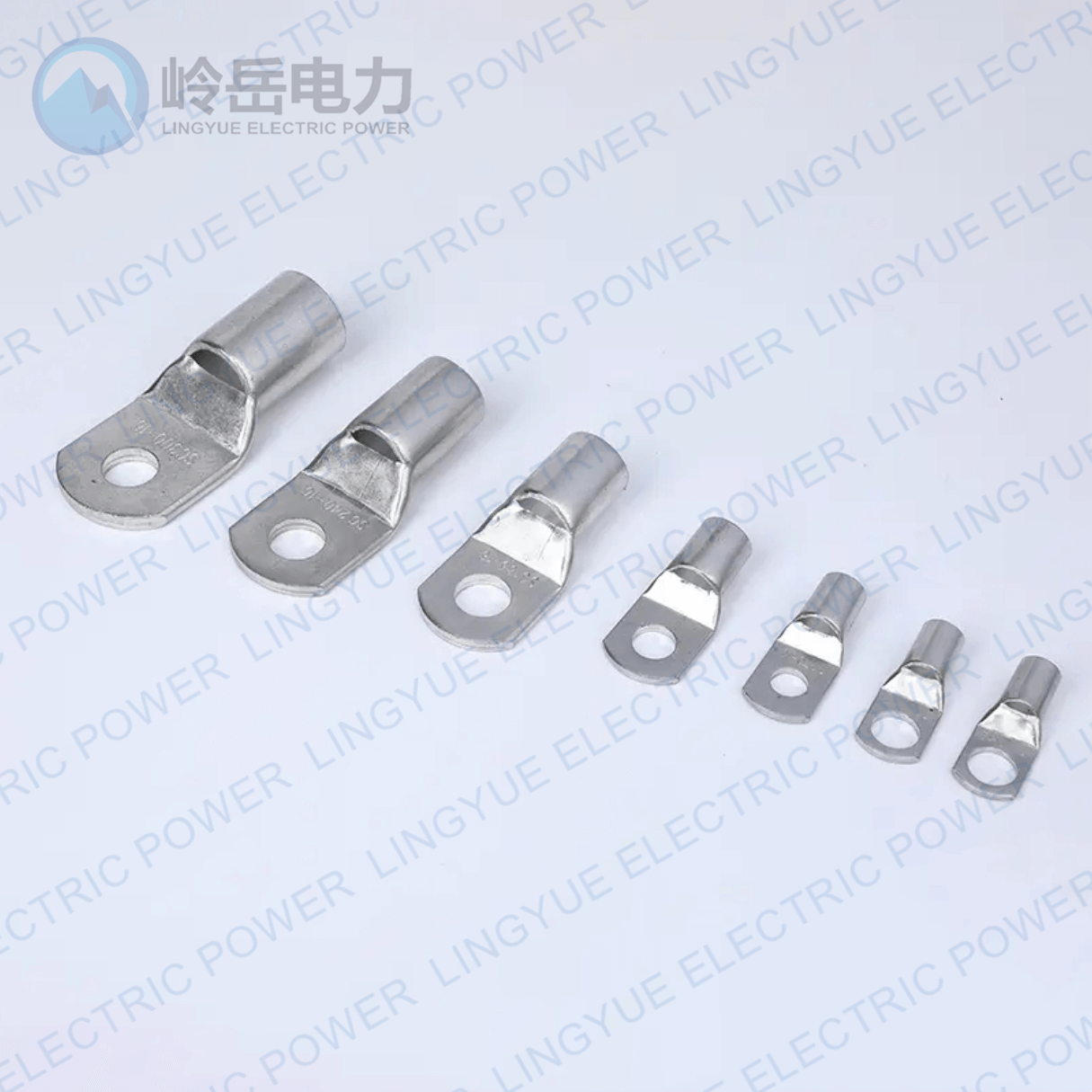

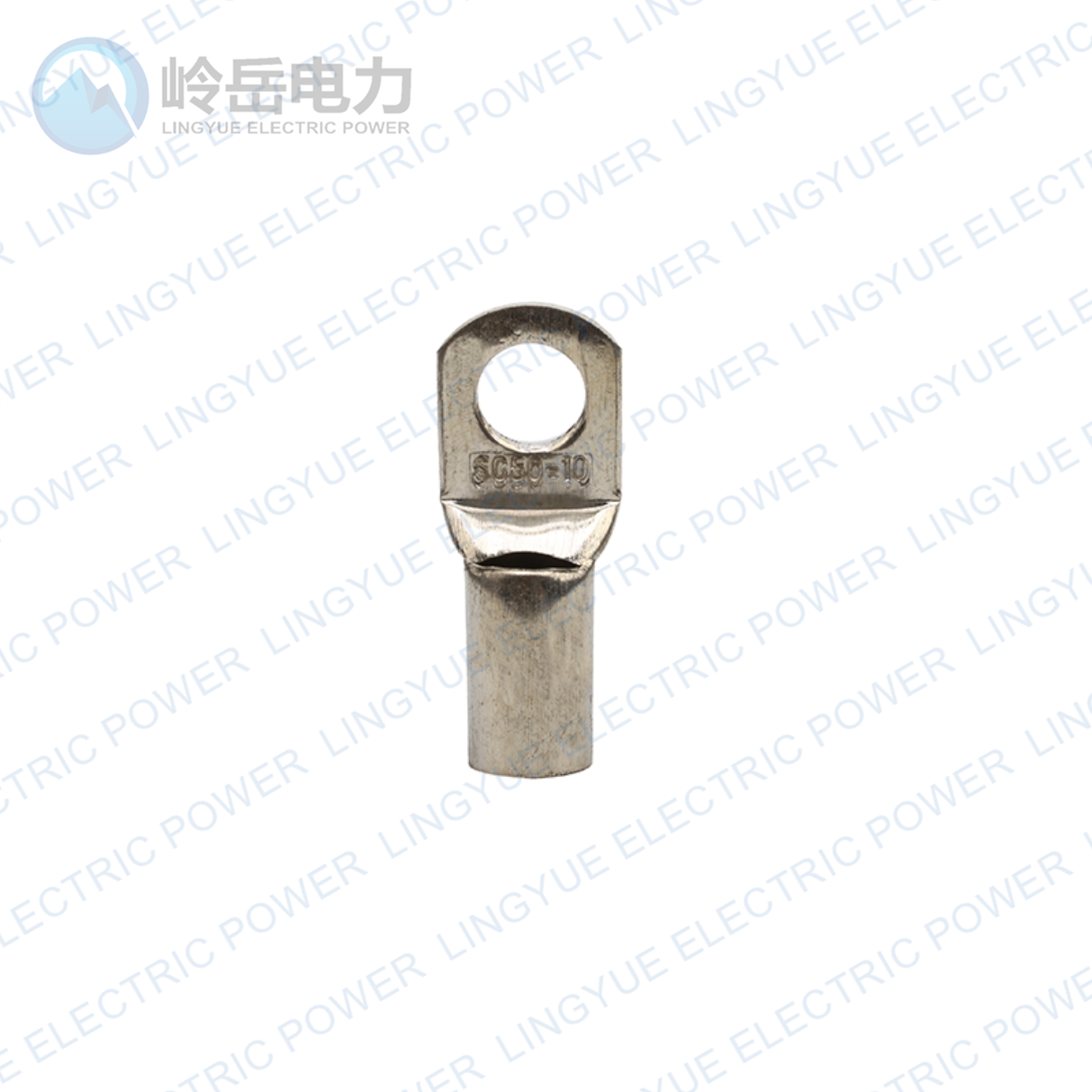

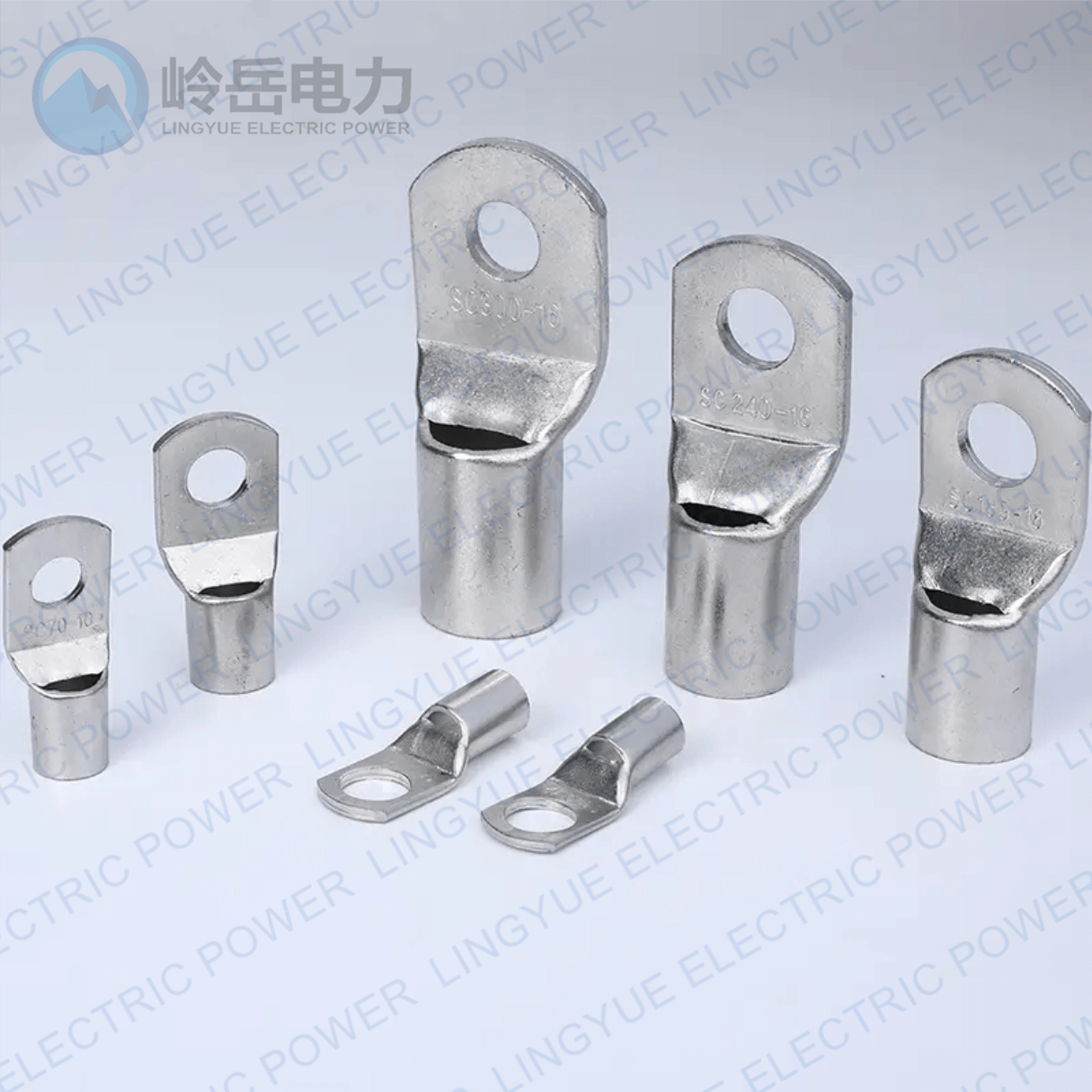

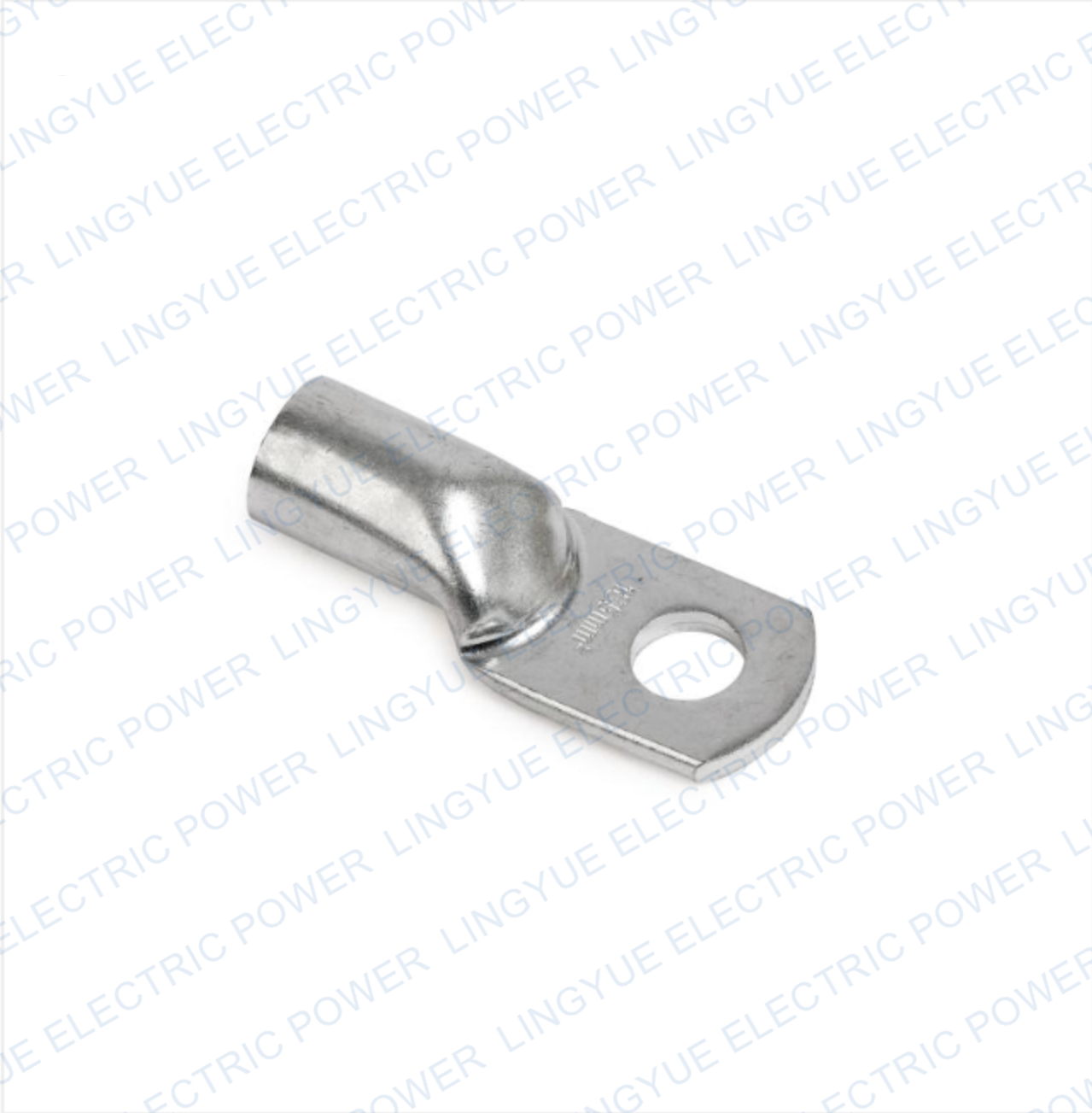

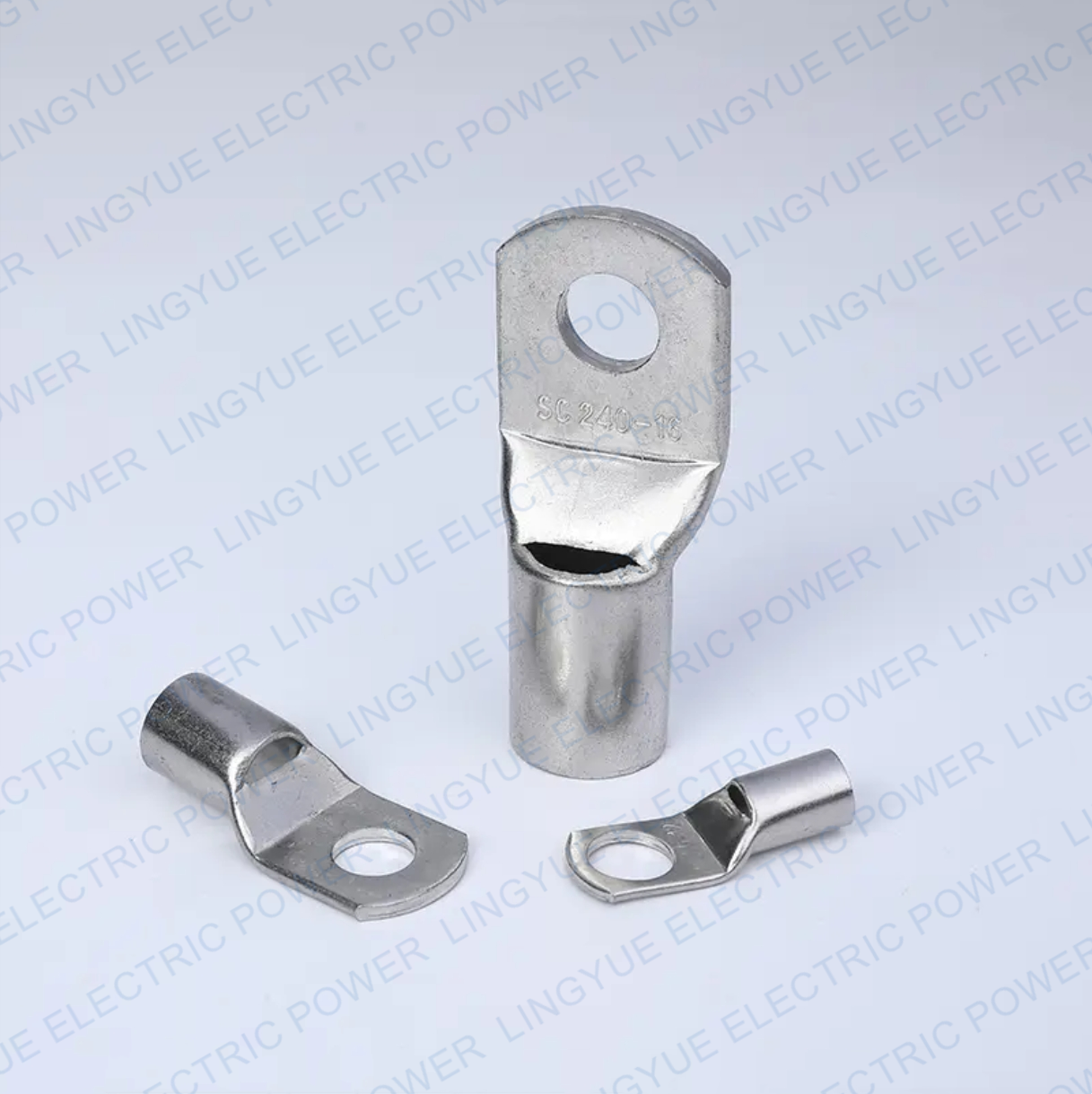

SC(JGK) ring type copper cable lug
Product Introduction

It is commonly used for cable end connection and continuity, making the cable and electrical connection stronger and safer. There is incorporate inspection hole to check the correct cable positioning

MANUFACTURED FROM PURE ELECTROLYTIC COPPER. Cu ≥99.9%
COPPER LUGS & CABLE TERMINALS FROM 2.5 TO 630 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED .
LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.

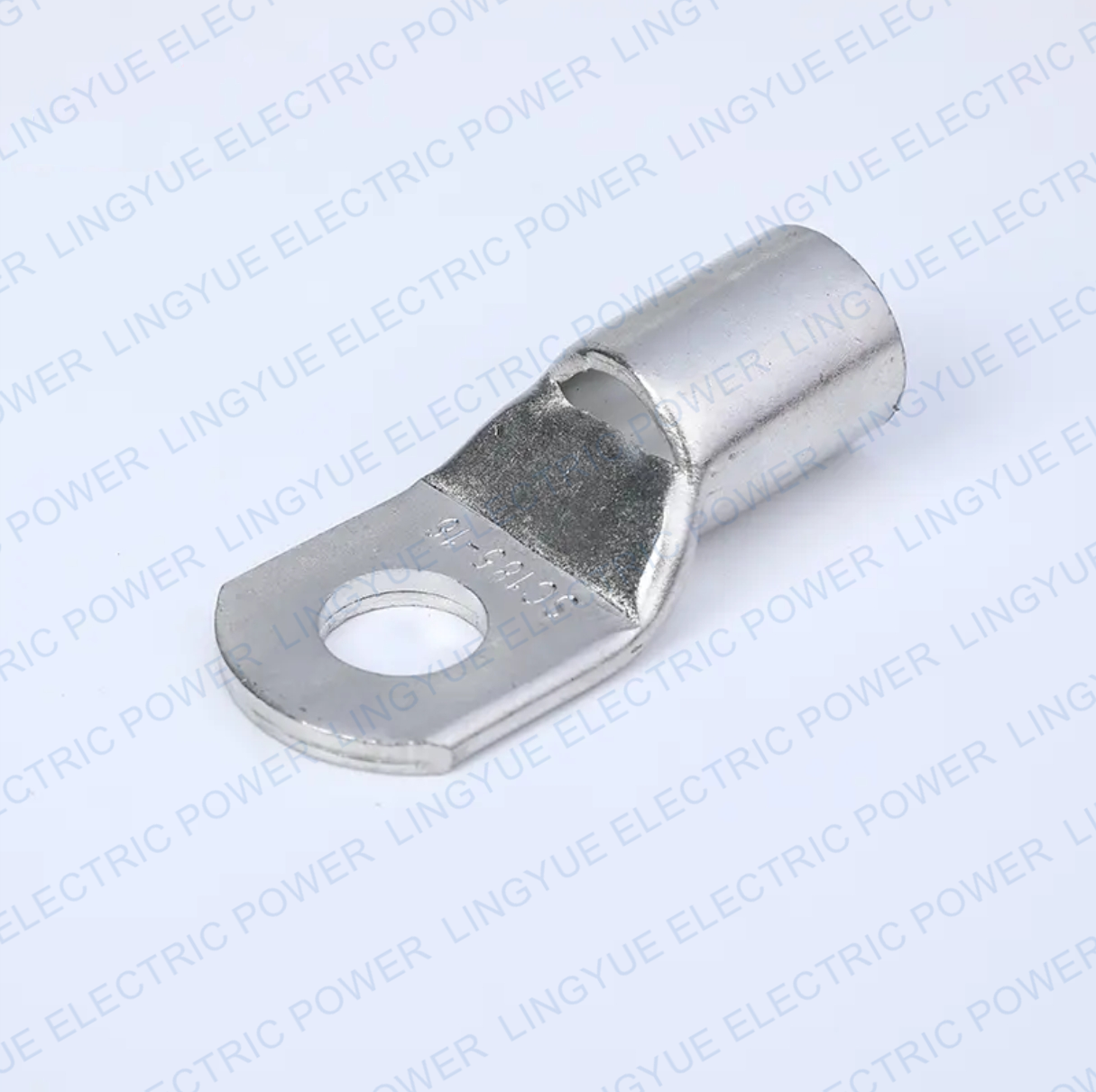

INCORPORATE INSPECTION HOLE TO CHECK THE CORRECT CABLE POSITIONING

Copper Battery Ring Type Electrical Cable Lugs Sizes



Product Name:

Copper Battery Ring Type Electrical Cable Lugs Sizes

Model Number:

SC

Material:

99.9% Pure Copper T3

Application:

Connect conductor

Treatment:

Electro tin plated

Standard:

EN60998

Certification:

ISO9001


Item No.

Applicable Bolts

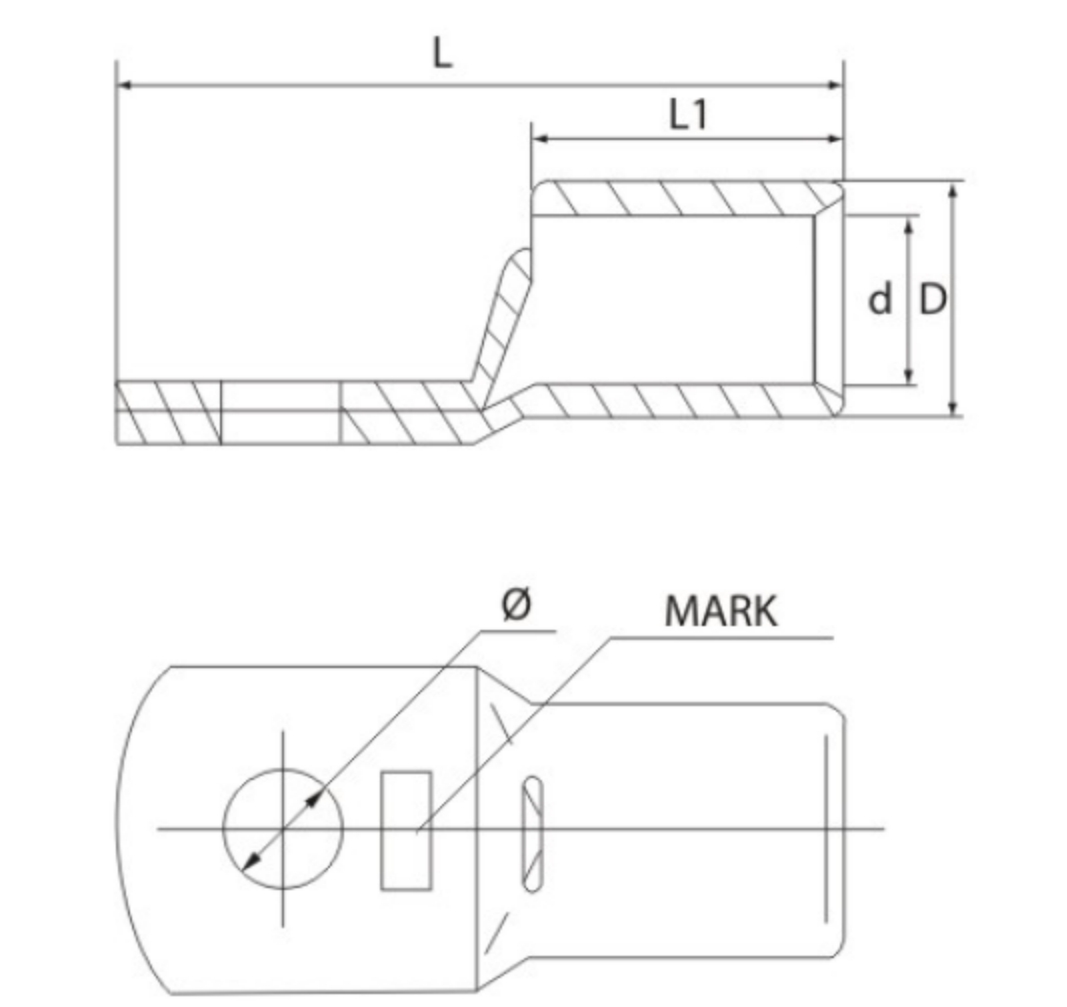

 Dimension(mm)



D

d

L1

L

SC(JGK)-1.5

Ø4 Ø5 Ø6

3.5

1.8

7.0

19.0

SC(JGK)-2.5

Ø4 Ø5 Ø6

4.0

2.5

7.0

19.0

SC(JGK)-4

Ø4 Ø5 Ø6

4.8

3.1

8.0

20.0

SC(JGK)-6

Ø5 Ø6 Ø8

5.5

3.8

9.0

24.0

SC(JGK)-10

Ø6 Ø8

6.7

5.0

9.0

25.0

SC(JGK)-16

Ø6 Ø8 Ø10

7.5

5.8

11.0

30.0

SC(JGK)-25

Ø6 Ø8 Ø10 Ø12

9.0

7.0

12.5

33.0

SC(JGK)-35

Ø6 Ø8 Ø10 Ø12

10.5

8.3

14.5

38.0

SC(JGK)-50

Ø8 Ø10 Ø12

12.5

9.9

17.0

45.0

SC(JGK)-70

Ø8 Ø10 Ø12

14.5

11.6

18.0

49.0

SC(JGK)-95

Ø8 Ø10 Ø12 Ø16

17.5

14.1

19.0

55.0

SC(JGK)-120

Ø12 Ø16

19.5

15.7

23.0

62.0

SC(JGK)-150

Ø12 Ø16

20.5

16.6

28.0

68.0

SC(JGK)-185

Ø12 Ø16

23.5

18.9

32.0

77.0

SC(JGK)-240

Ø12 Ø16

26.0

21.4

36.0

88.0

SC(JGK)-300

Ø12 Ø16

30.0

24.2

42.0

100.0

SC(JGK)-400

Ø12 Ø16

34.0

27.2

46.0

110.0

SC(JGK)-500

Ø16 Ø20

38.0

30.2

48.0

121.0

SC(JGK)-630

Ø16 Ø20

45.0

35.2

55.0

138.0
