Product Introduction

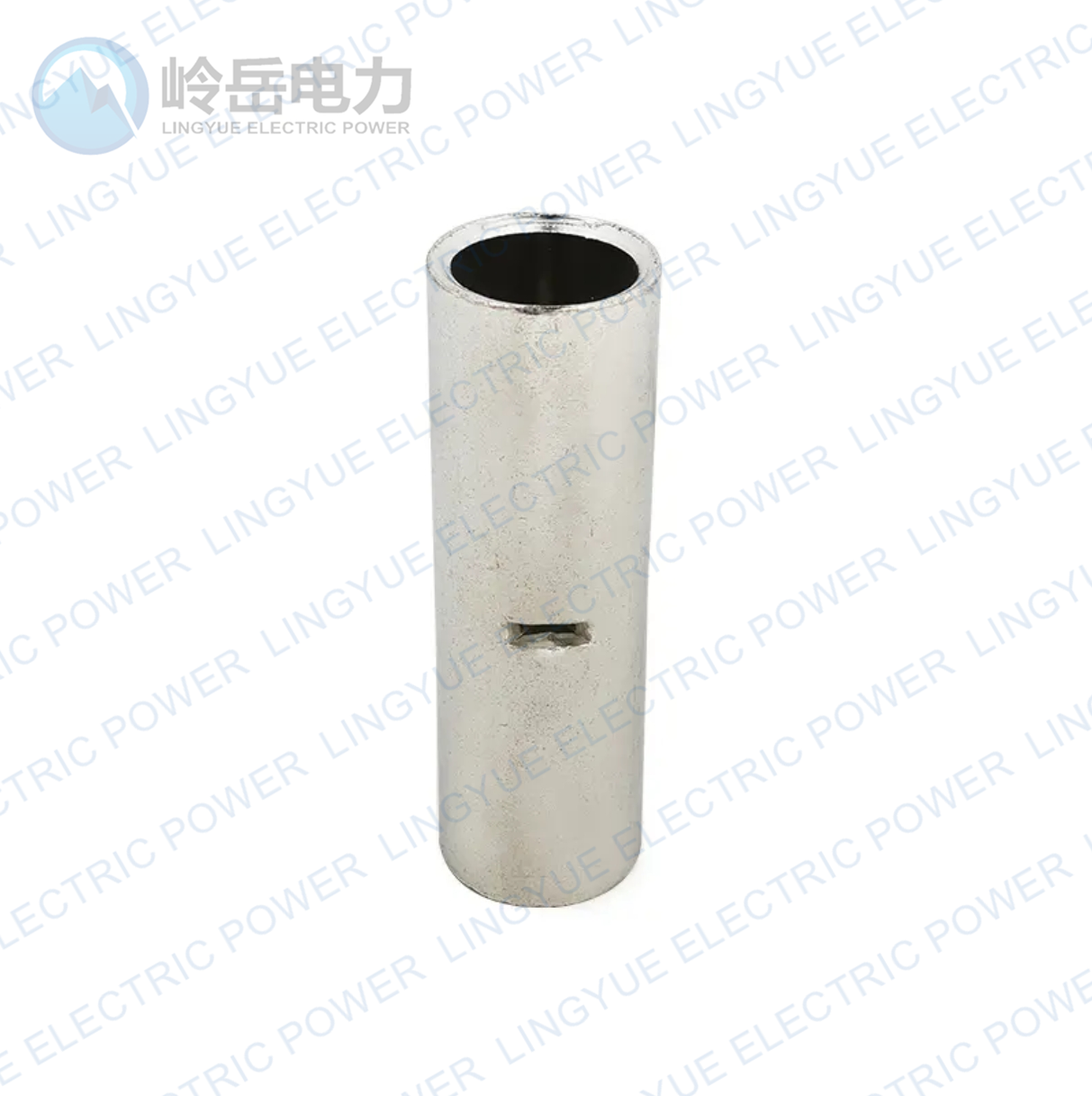

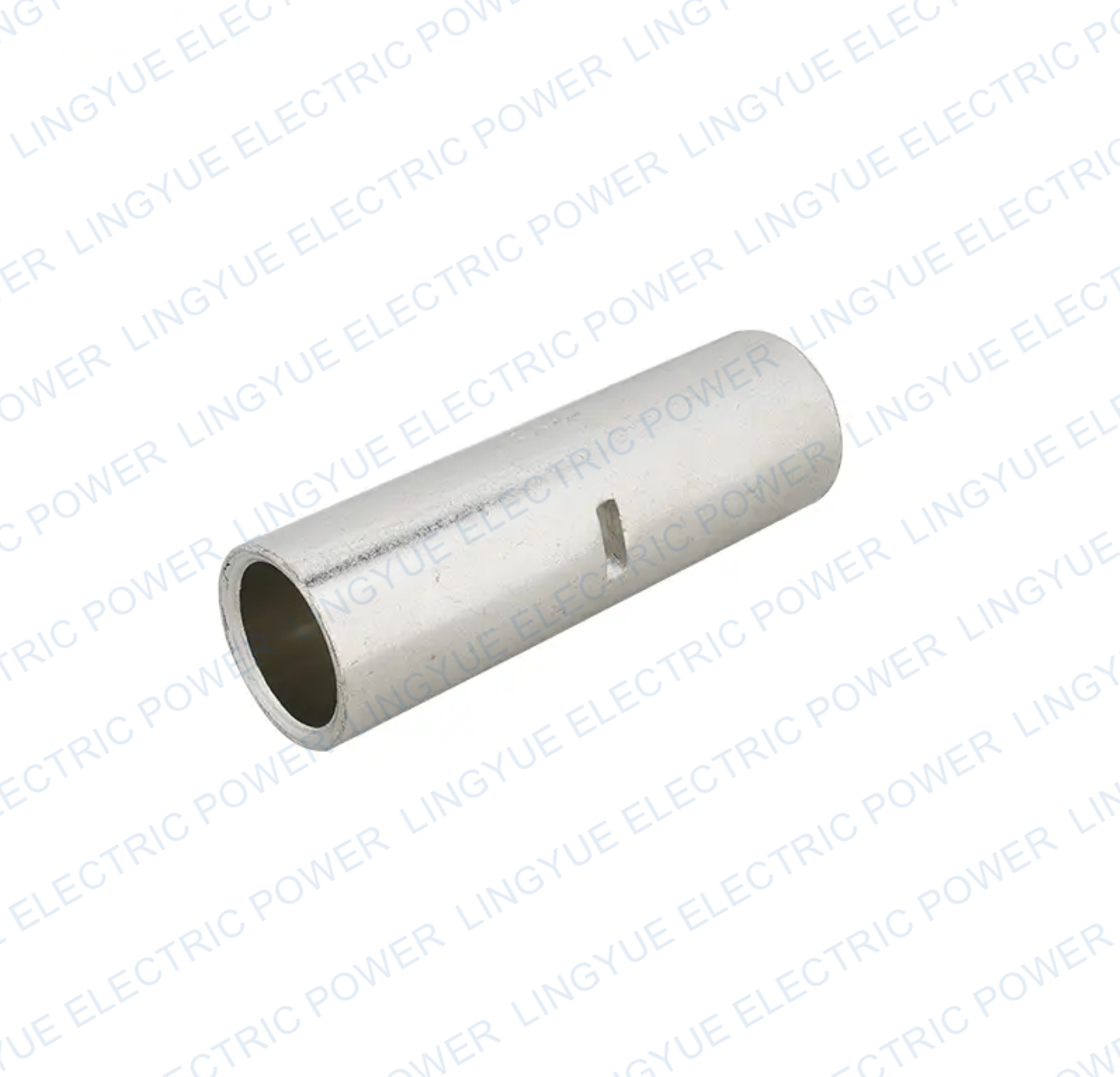

GTY cable link used for intermediate connection of copper cables in low voltage.



It is commonly used for connecting two copper conductor in the power line or underground system. There is solid center barrier to easier to control the cable stripping length.



Features:
1.For use with oil-filled cable; Strong center barriers.
2.The cable area is clearly marked on the ferrule.
3.Material:CU≥99.9%
4.Surface:Tinned

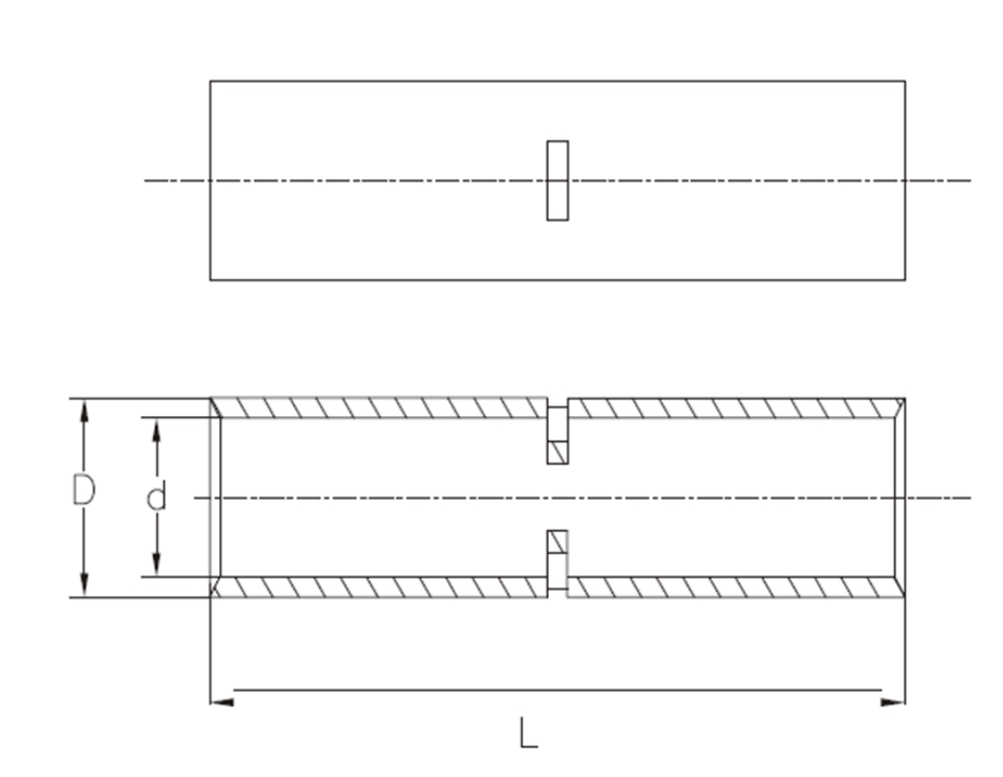

Data


Type

D±0.5

d±0.3

L±2

GTY-1(2)-1.5

3.7

1.8

20

GTY-1(2)-2.5

4

2.5

20

GTY-1(2)-4

4.8

3.1

20

GTY-1(2)-6

5.5

3.8

25

GTY-1(2)-10

6.5

5.4

25

GTY-1(2)-16

7.5

6.1

35

GTY-1(2)-25

9

7.5

40

GTY-1(2)-35

10.5

8.9

44

GTY-1(2)-50

12.5

10.5

45

GTY-1(2)-70

14.5

11.9

50

GTY-1(2)-95

17

13.9

60

GTY-1(2)-120

19.5

16

65

GTY-1(2)-150

20.5

17

70

GTY-1(2)-185

24

19.5

75

GTY-1(2)-240

25

20.5

79

GTY-1(2)-300

30

25.4

85

GTY-1(2)-400

34

28.6

90

GTY-1(2)-500

38

32

100

GTY-1(2)-630

45

35

110
