CORROSION RESISTANT SPLICE/AUTOMATIC SPLICE CONNECTOR

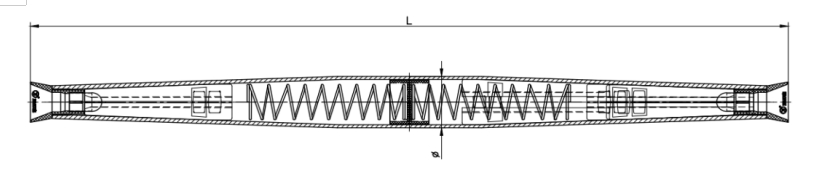

Aluminum Automatic Splice cable connector is suitable for maintenance and repair of broken line or new line.A tension-dependent device in which the line is installed with at least 10% tension of the rated strength of the wire to ensure a reliable electrical connection, and the current is transmitted to the other end through the wire clip of the wire. Taper type automatic quick connector (full tension automatic connector)
Automatic splice connector |
Type | AAAC(mm²) | Overhead insulated wire (mm²) | ACSR(mm²) | Diameter range （mm） | Color |
GL-401 |
|
|
| 4.68-6.7 | Blue |
GL-402A | 16 | 16 | 16 | 5.59-6.35 | Red |
GL-4042A | 25 | 25 | 25 | 5.59-8.13 | Red |
GL-404A | 35 | 35 | 35 | 5.84-8.60 | Red |
GL-406A | 50 | 50 | 50 | 9.02-10.16 | Yellow |
GL4076A |
|
|
| 9.02-11.94 | Yellow |
GL-407 | 70 | 70 | 70 | 10.16-11.94 | Black |
GL-408 | 95 | 95 | 95 | 11.43-13.46 | Black |
GL-4098 |
|
|
| 11.43-15.11 | Black |
GL-409A | 120 | 120 | 120 | 12.83-15.11 | Black |
GL-410 | 150 | 150 | 150 | 15.32-16.92 | Green |
GL-411 | 150 | 150 | 150 | 16.74-18.39 | Green |
GL-412 | 185 | 185 | 185 | 18.34-20.19 | White |
GL-413 | 240 | 240 | 240 | 19.81-21.79 | White |
GLT-1316A | —— | —— | 120 | —— | Natural color |
GLT-1317A | —— | —— | 150 | —— |
|
GLT-1319A | —— | —— | 240 | —— | Blue |
GLT-1333A+ | 300 | Please consult us | 240 | 21.34-23.37 | Natural color |
GLT-1355A+ | 300 | Please consult us |
| 23.80-24.80 | Natural color |
GLT-1385A+ | 400 | Please consult us |
| 25.3-26.19 | Natural color |
GLT-1441A+ | 500 | Please consult us |
| 27.94-28.95 | Red |
Feature
1.It can withstand the full strength of the wire itself
2.Hammer housing design ensures high strength adhesion to the wire
3.The inner wire clip is embedded into the inner wire
4.It can provide conductivity not lost to the conductor
5.The wire clip can conduct current to the housing with higher conductivity
6.The clamping jaws of the wire clip can penetrate the residual oxide layer on the wire surface
7.Large contact points help dissipate heat
8.The meshing metal clamp maintains good electrical conductivity under various conditions of tension variation
9.No special tools for installation, no crimping operation
10.Convenient for live work installation
11.The installation steps are simplified and the safety of operation is greatly improved
