Product Introduction

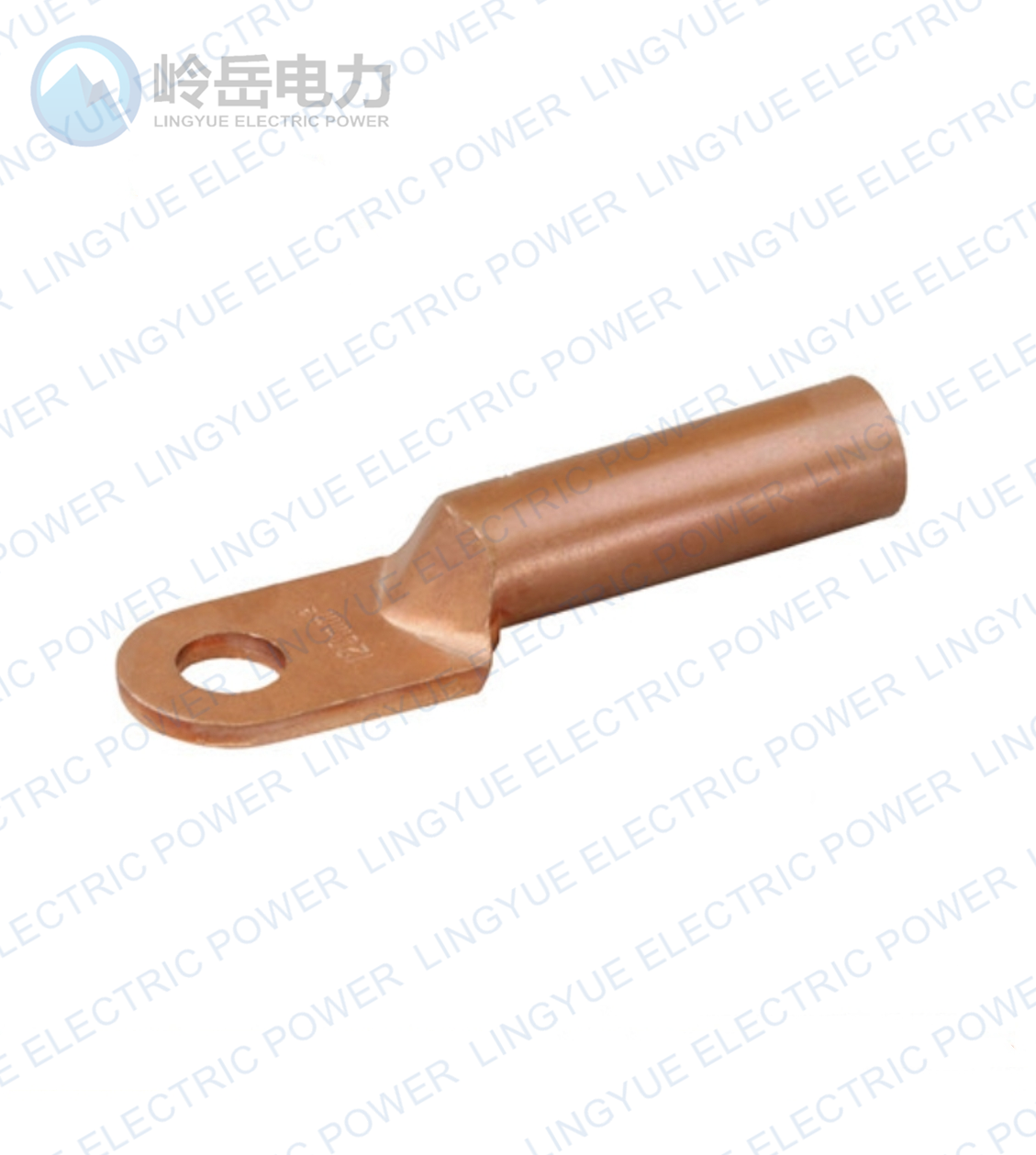

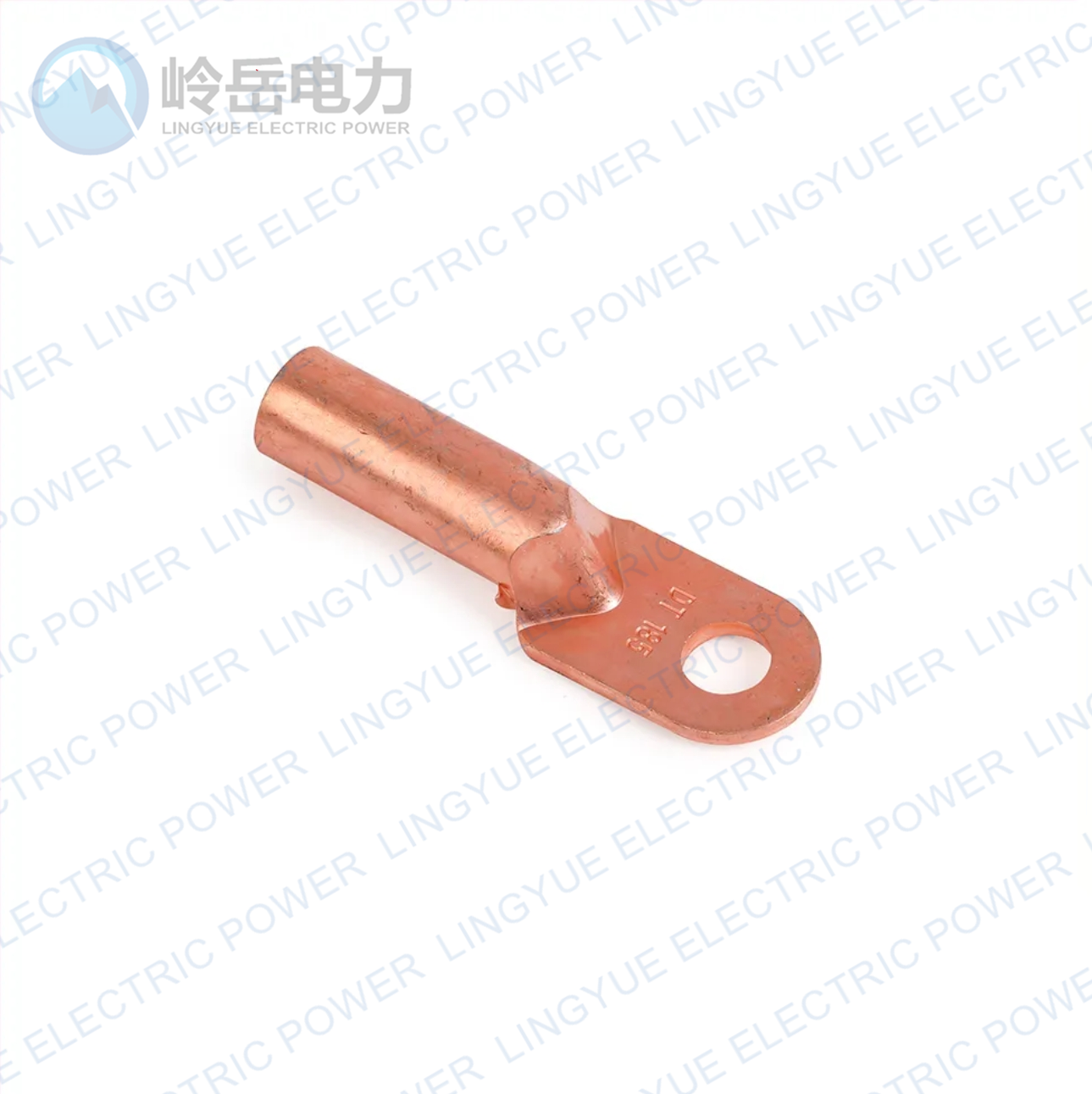

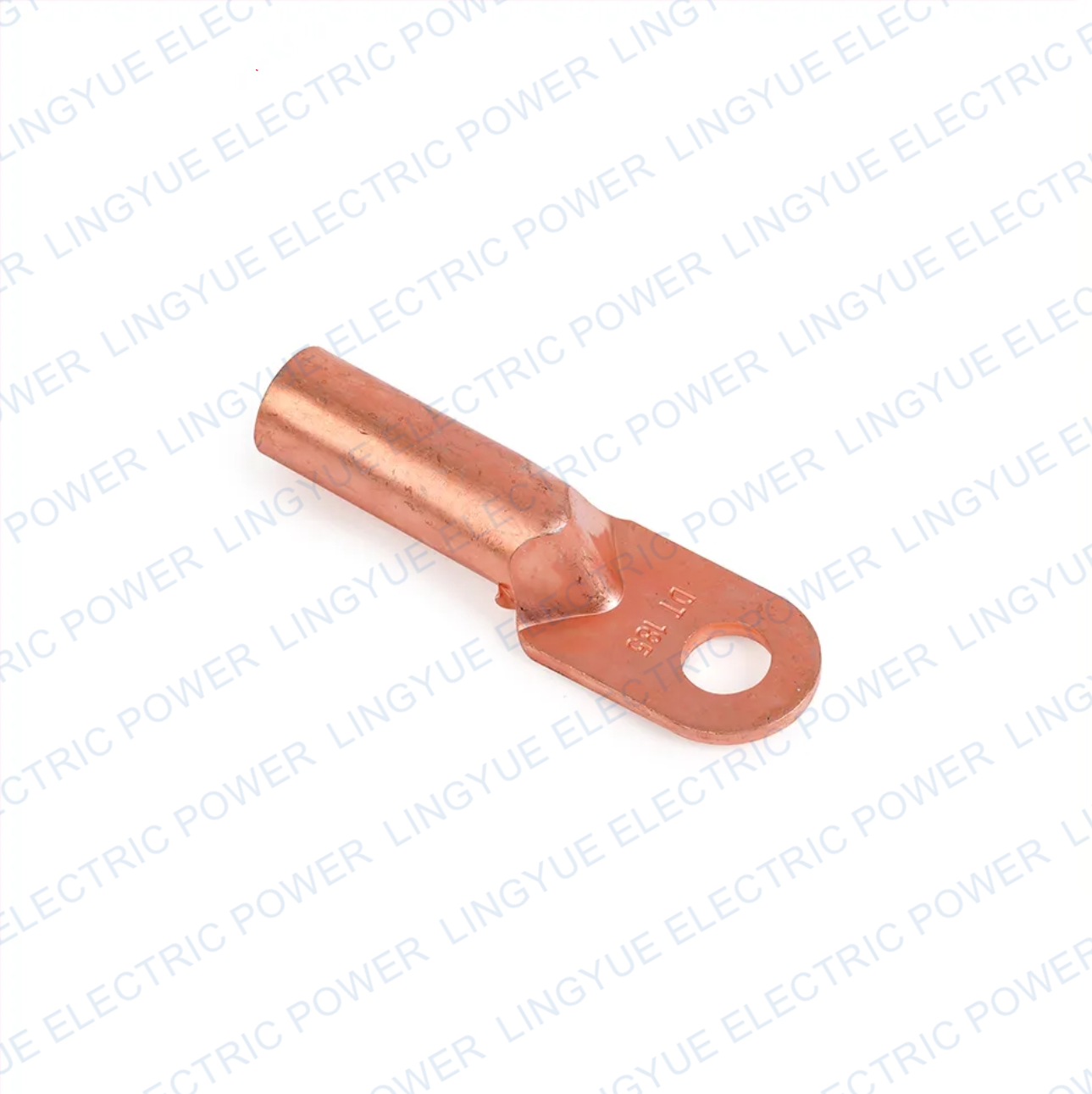

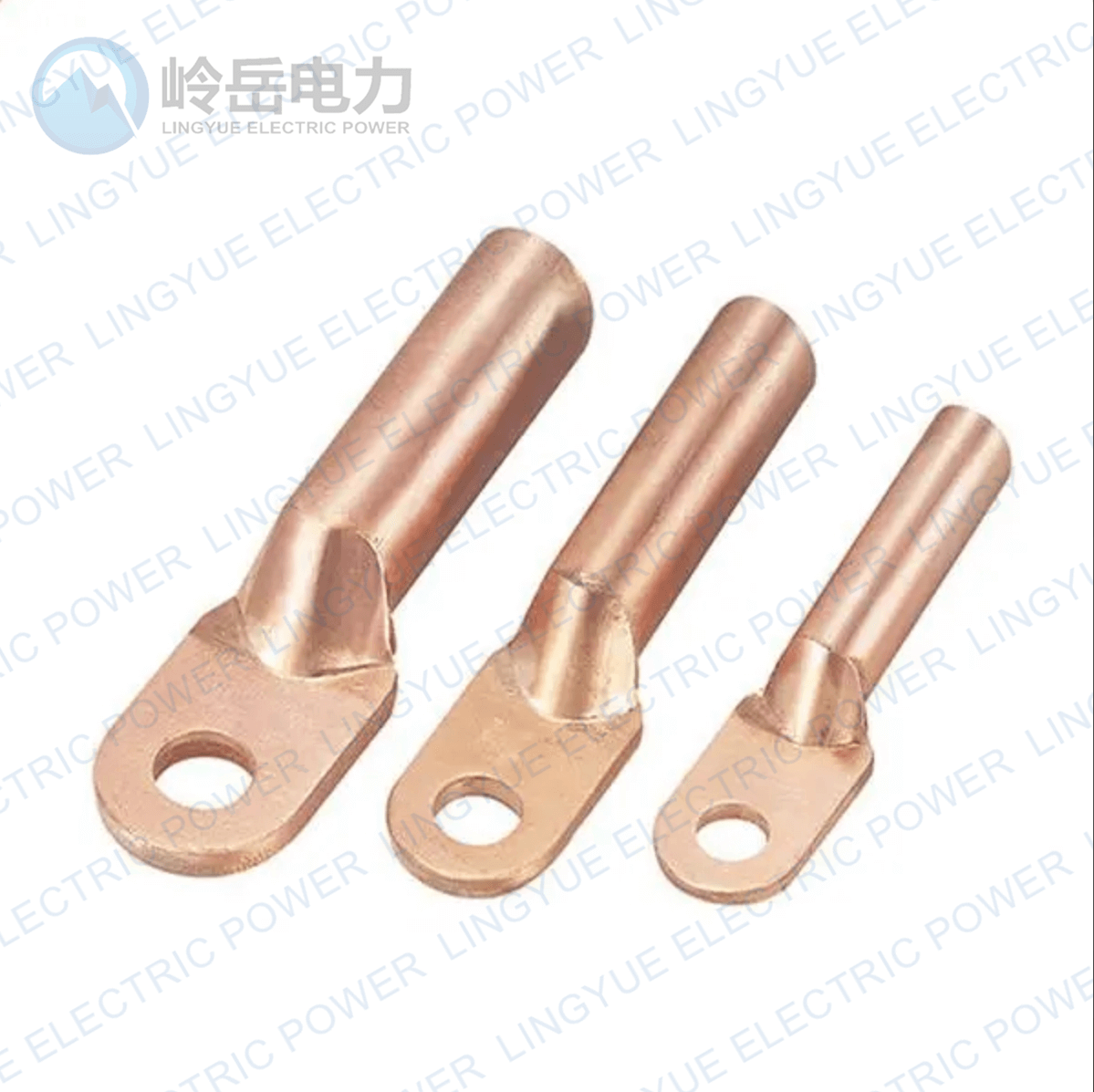

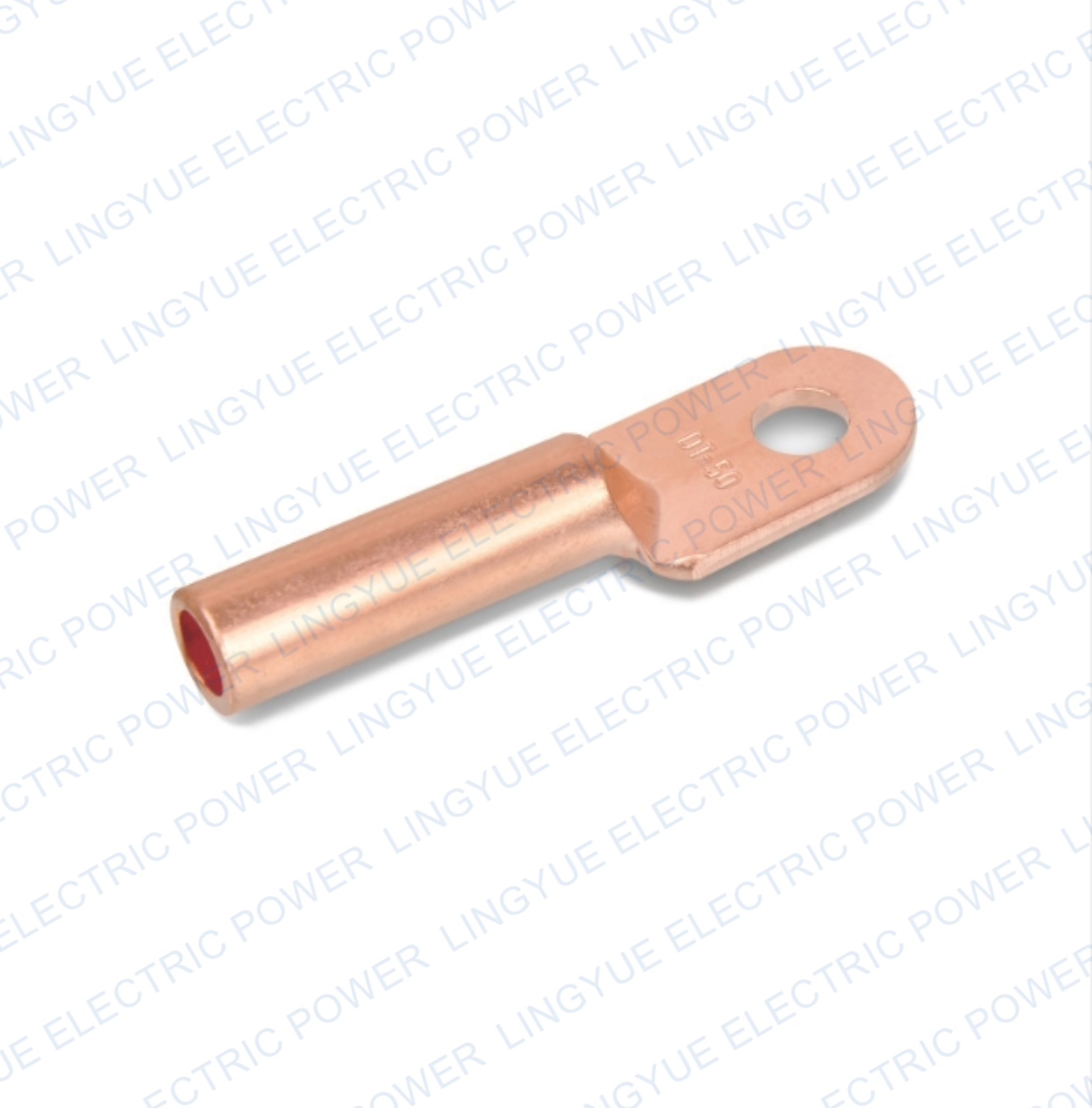

DT series copper lugs are suitable for the conjunction of wires cable in the distribution equipment and the electrical equipment.

Datas

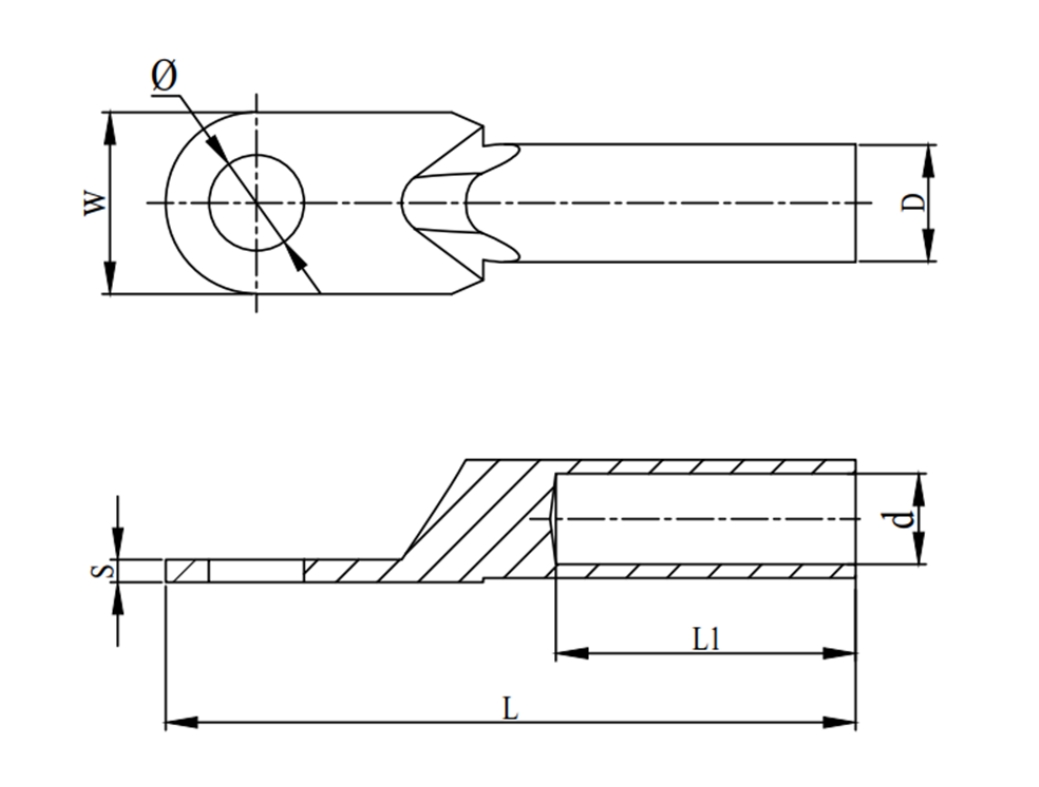

Type	Dimension(mm)
Type	φ	D	d	L	L1	W
DT-10	8.5	9	5.2	63	32	16
DT-16	8.5	10	6.2	66.2	33.4	16
DT-25	8.5	11	7	72	33.4	18
DT-35	10.5	12	8.2	75.8	39	20
DT-50	10.5	14	9.8	86.2	42	23
DT-70	12.5	16	11.4	93	45	26
DT-95	12.5	18	13.8	103	48	28
DT-120	14.5	20	14.8	110.4	50.2	30
DT-150	14.5	22	17.2	117.2	52.2	34
DT-185	16.5	25	19	124	57.4	37
DT-240	16.5	27	20.8	135	63	40
DT-300	18	31	23	150	67	50
DT-400	21	34	26.5	158	68	50
DT-500	21	38	29	166	74	54.2
DT-630	21	45	34.2	203	78.6	59.8
