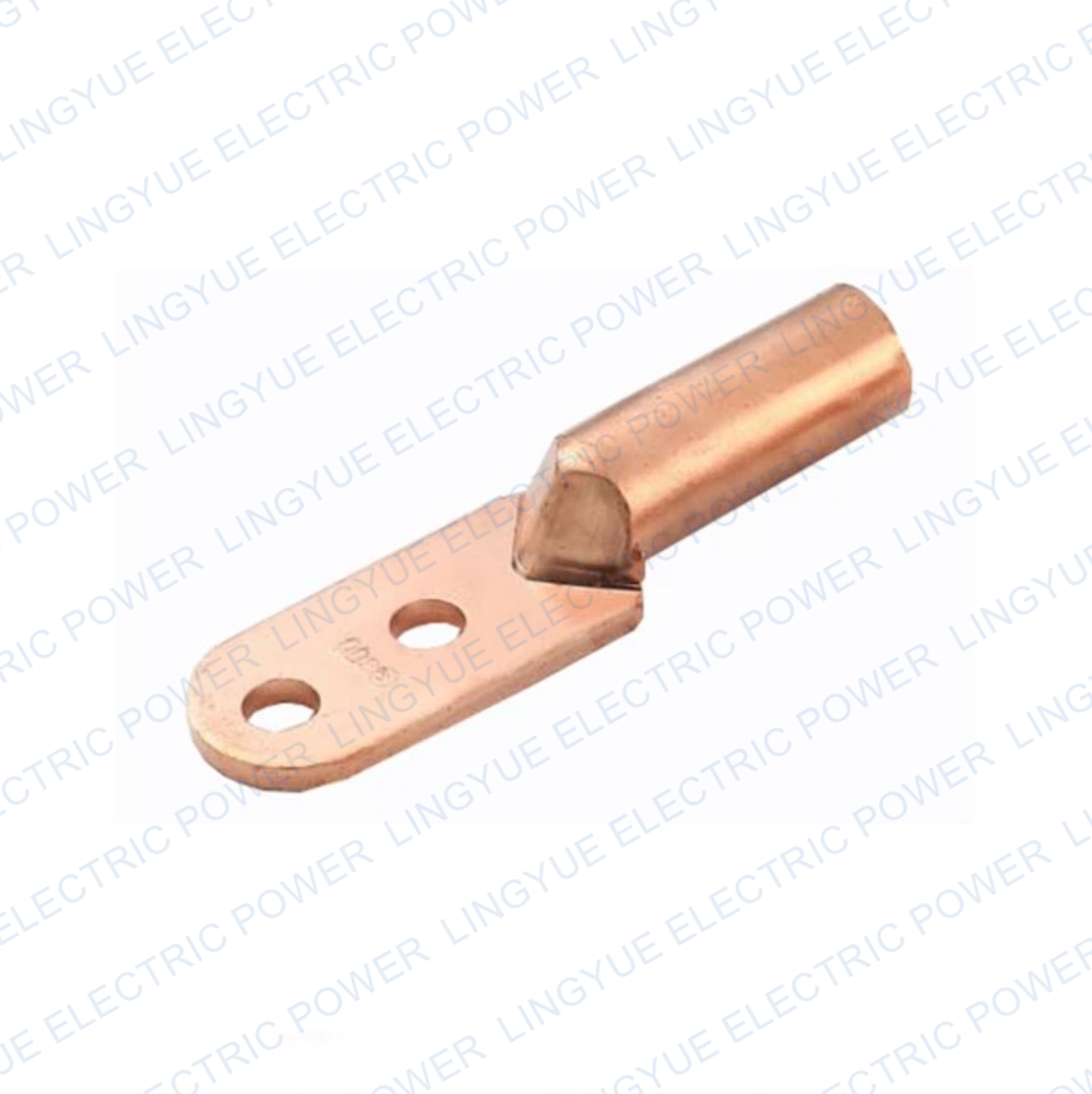

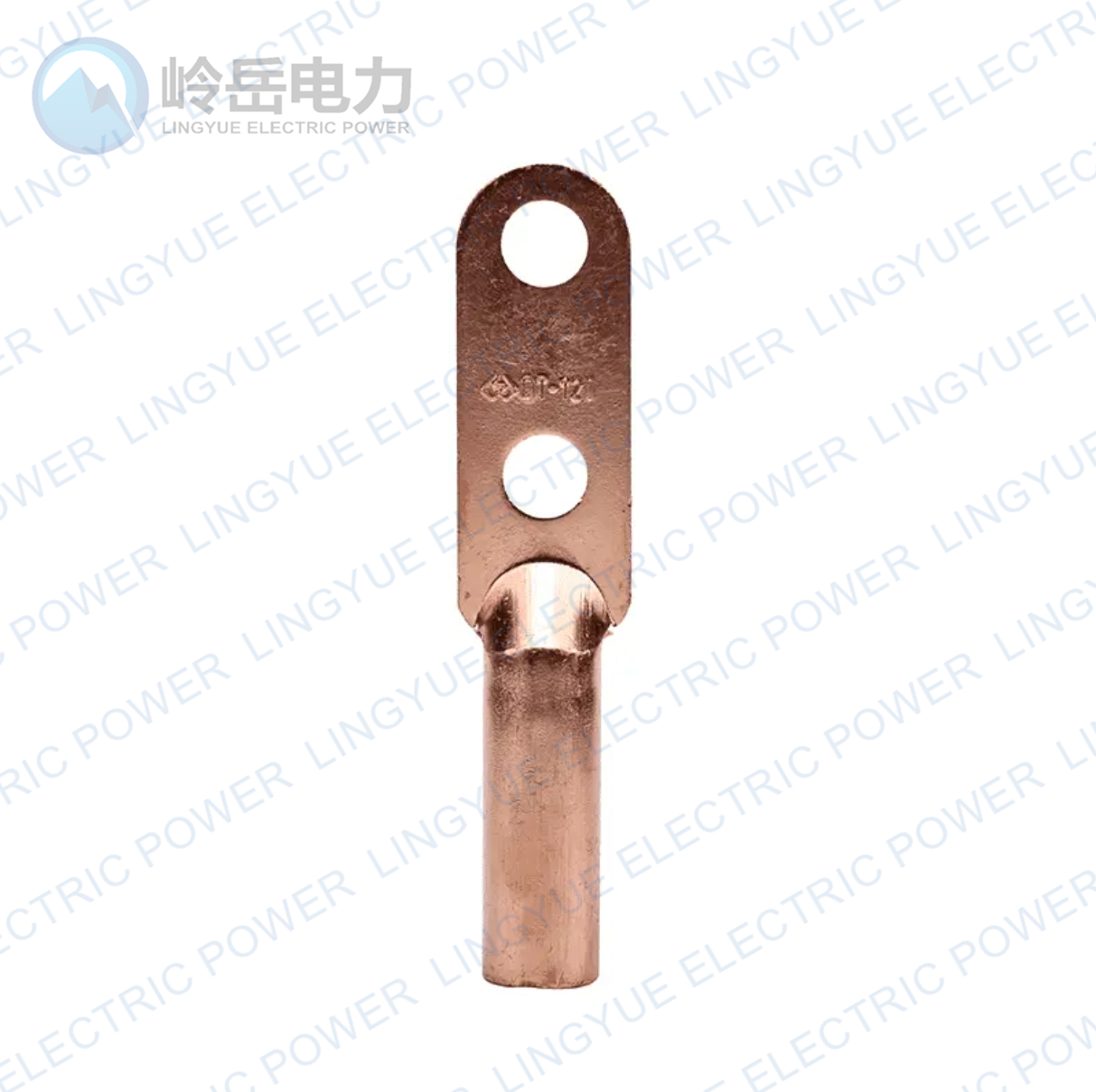

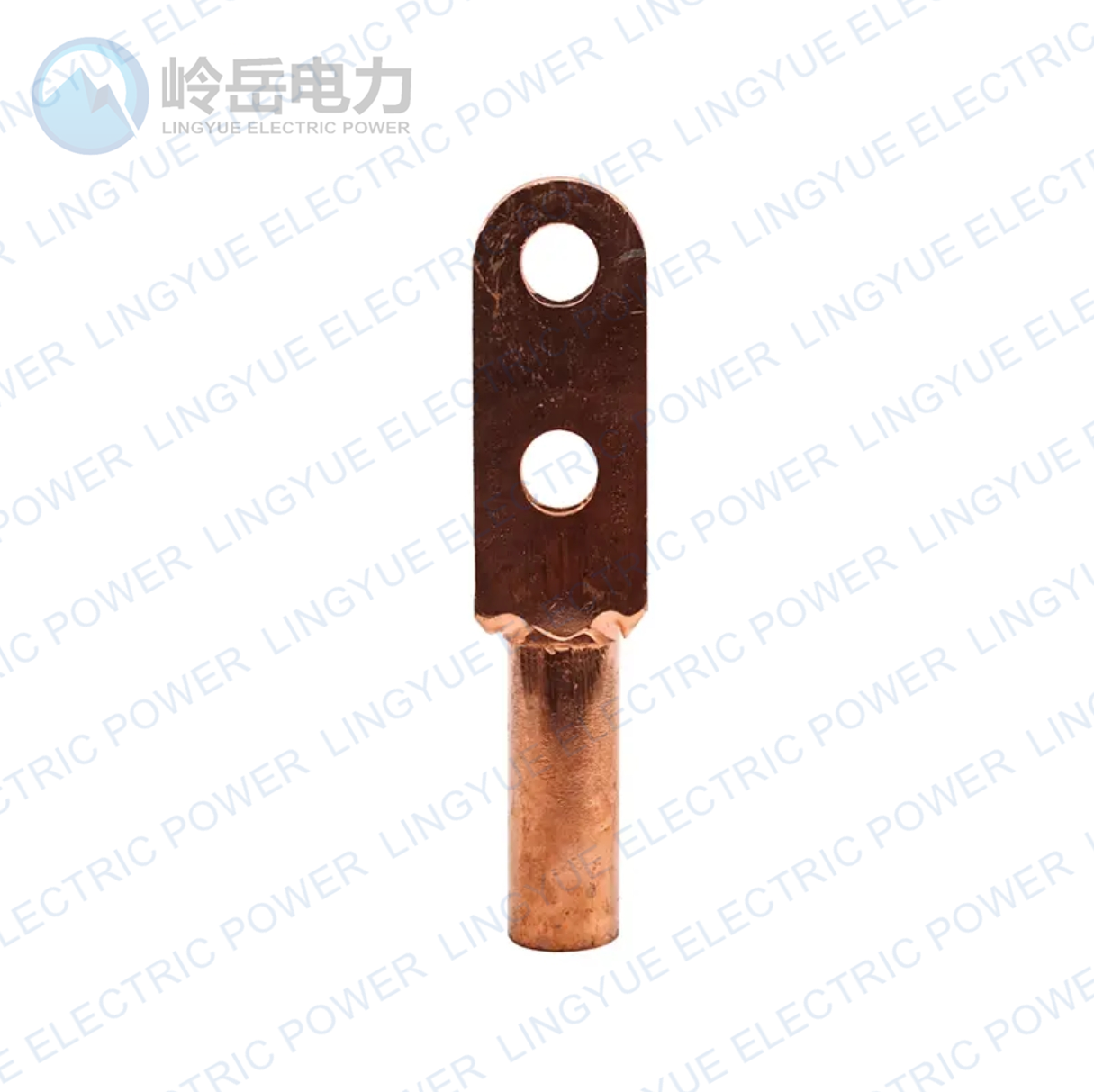

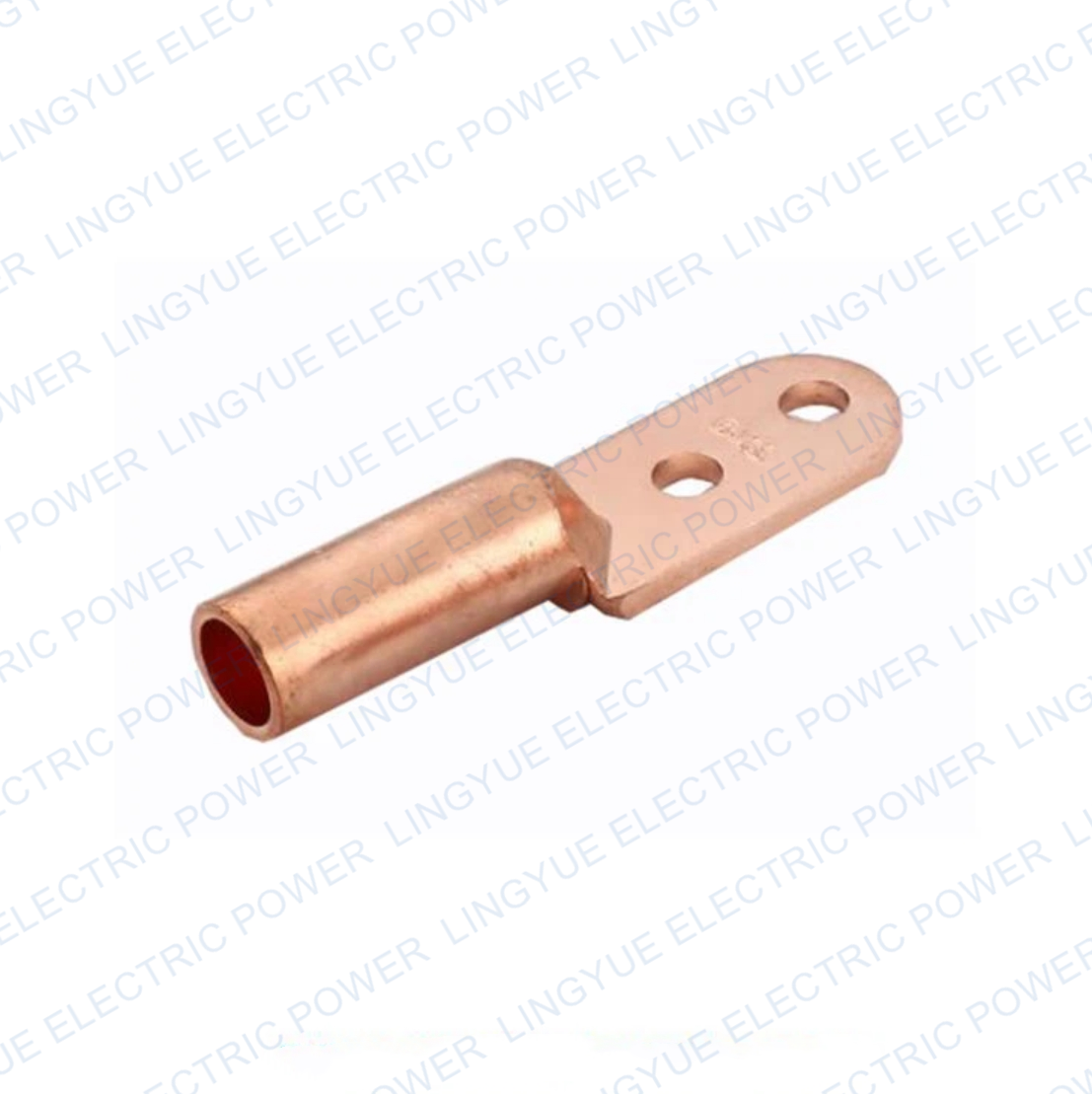

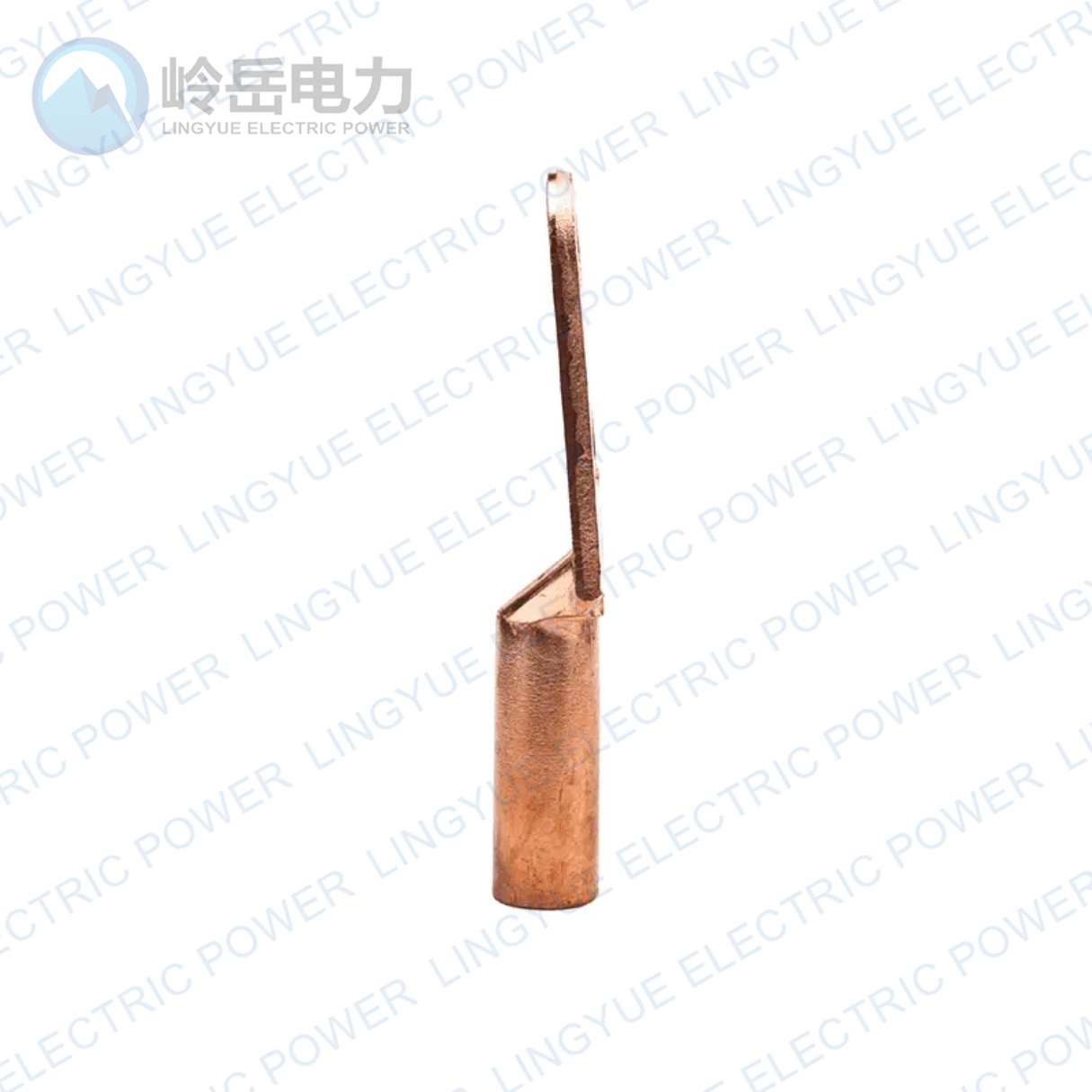

DTD copper connecting terminal(two holes)

DTD copper connecting terminal(two holes)

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

MANUFACTURED BY PURE ELECTROLYTIC COPPER. Cu ≥99.9%

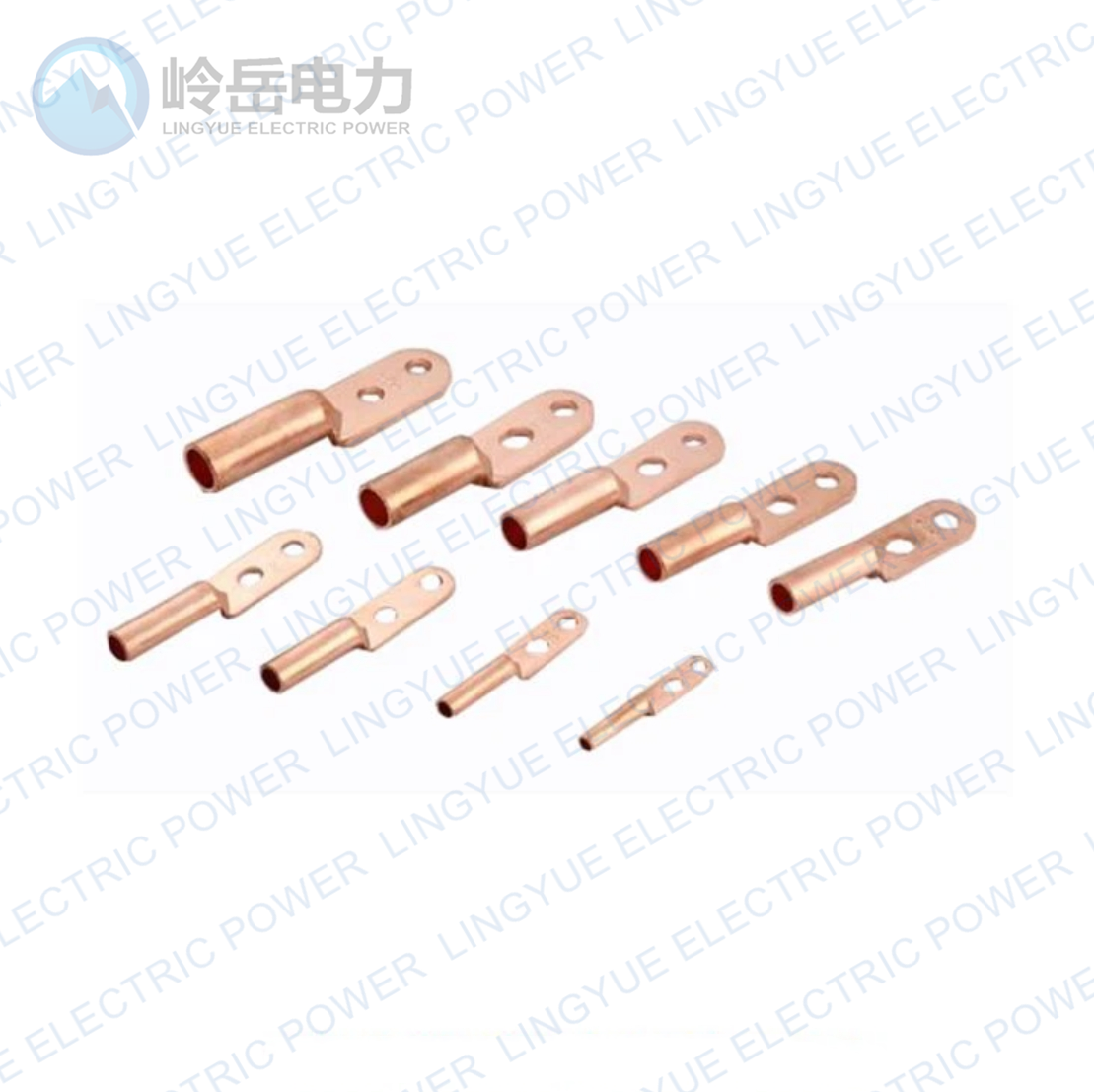

COPPER LUGS & CABLE TERMINALS FROM 10 TO 800 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED .

CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY. DT Copper Cable Lug are suitable for the conjunction of wires cable in the distribution equipment and the electrical equipment.

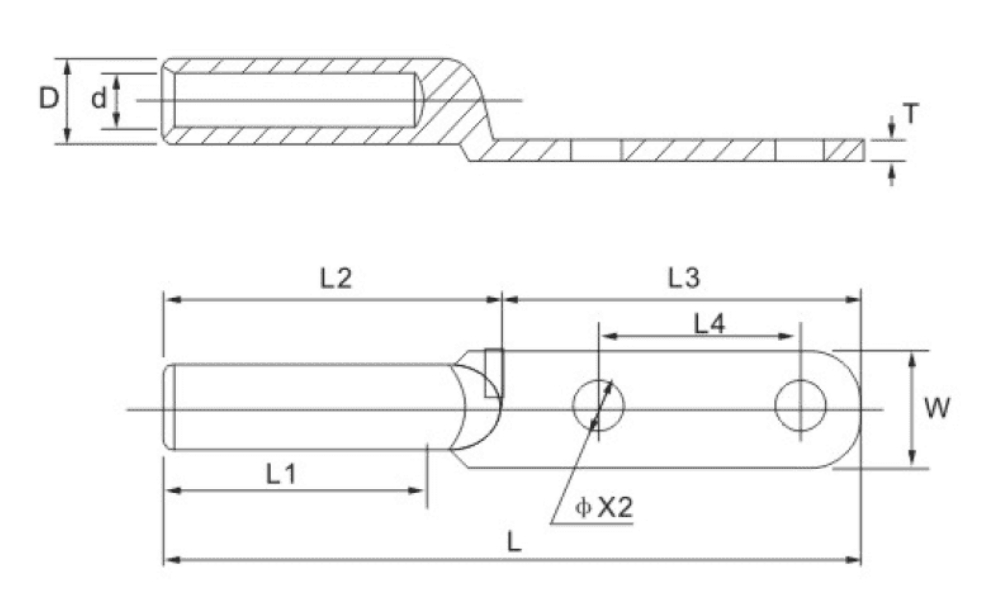

Item No.	Cable spec(mm²)	Dimensions(mm)											Note
		D	d	L1	L2	L3	L4	L5	L	W	T	Ø×2
DTD-16	16	10	6.4	33	45	43	25	8	88	16	4	8.5	Material: Cu≥99.9% Can be OEM
DTD-25	25	11	7.4	34	46	44	25	9	90	18	4	8.5
DTD-35	35	12	8.7	36	48	62	40	10	110	20.5	4	10.5
DTD-50	50	14	9.7	38	52	63	40	11.5	115	23	5	10.5
DTD-70	70	16	11.7	43	59	68	40	13	127	26	5	12.5
DTD-95	95	18	13.7	48	63	70	40	14	133	28	5	12.5
DTD-120	120	20	15.2	50	68	72	40	15	140	30	6	14.5
DTD-150	150	22	16.7	55	73	77	40	17	150	34	6	14.5
DTD-185	185	24	18.7	57	85	78	40	18.5	160	37	6.5	17
DTD-240	240	27	21	57	84	80	40	20	164	40	6.5	17
DTD-300	300	30	23.5	67	90	95	40	25	185	50	7	17
DTD-400	400	32	25.5	75	115	100	45	26	215	55	7.5	21
DTD-500	500	35	28.5	77	120	100	45	26	220	55	9.5	21
DTD-630	630	45	33	80	125	105	45	28	230	60	9.5	21
